VRV IV-S

BRINGING INNOVATION TO YOUR HOME

VRV IV-S

  • Available in
    Reverse Cycle (Heating or Cooling)
  • Capacities
    9.0kW, 11.2kW, 14.0kW, 16.0kW, 22.4kW, 24.0kW
  • Refrigerant
    R410A

Daikin's VRV IV-S multi split air conditioning system incorporates the latest technology from our VRV commercial air conditioners including remarkable energy efficiency, quiet operations and long piping runs of up to 100m (24kW Model) for flexible condenser placement.

With the size of the Australian residential properties reducing over time, the compact size and horizontal discharge design of the VRV IV-S outdoor unit makes it an ideal solution for the modern home.

Warranty info

MEPS
Minimum Energy
Performance Standards
learn more

All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Key Features

It's the unique features of Daikin products that makes us the world leader.

  • Night Quiet Mode

    Night Time Quiet Mode

    Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.

  • Intelligent Comfort 2

    Intelligent Comfort

    Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.

  • Ultimate-Versatility

    Ultimate Versatility

    As many as 14 indoors can be connected ranging from wall mounted, floor standing, bulkheads, cassettes and ceiling suspended units.

  • Compact-Footprint

    Compact Footprint

    Available in a wide range of capacities whilst maintaining a compact installation footprint with long piping runs of up to 100m (24kW Model).

  • Improved Energy Efficiency

    Energy Efficient

    Running costs are kept low as only rooms requiring air conditioning can be switch on independently.

  • Individual Comfort

    Comfort for Everyone

    Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants.

5 year
5 Year Warranty
learn more

Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia

Technical Specifications

Available Options:

  • System: Reverse Cycle
  • Capacities: 9.0kW, 11.2kW, 14.0kW, 16.0kW, 22.4kW, 24.0kW
  • Indoor Type: Wall Mounted, Bulkhead, Ducted, Floor Standing, Ceiling Suspended & Cassettes
  • Power Supply: 1 Phase, 220-240, 50Hz or 3 Phase, 380-415v, 50Hz
  • Refrigerant: R410A
  • Outdoor Units
  • Wall Mounted
  • Floor Standing
  • Floor/Ceiling Suspended
  • Bulkhead
  • Compact Cassette
  • Slim-line Ducted
  • Ceiling Concealed Ducted
Outdoor Unit RXYMQ3AV4A RXYMQ4AV4A RXYMQ5AV4A RXYMQ6AV4A RXYMQ8AY1 RXYMQ9AY1
Power Supply 1 phase, 230-240V, 50Hz 3 phase, 380-415V, 50Hz
Rated Capacity Cool (kW) 9.0 11.2 14.0 16.0 22.4 24.0
  Heat (kW) 10.0 12.5 14.0 18.0 25.0 26.0
Max Connectable Indoor Units   5 6 8 9 13 14
Casing Colour   Ivory White
Compressor Type   Hermetically Sealed Swing Type Hermetically Sealed Scroll Type
Refrigerant Type   R410A
Sound Level Cool (dBA) 51 52 53 55 57 58
  Heat (dBA) 52 54 54 56 58 59
Sound Power Level (dBA) 69 70 71 73 75 76
Dimensions (HxWxD) (mm) 990x940x320 1345x900x320 1430x940x320
Weight (kg) 71 82 104 138
Operation Range Cool (°CDB) -5 to 46
  Heat (°CWB) -20 to 15.5
Max Piping Length (m) 50 70 100
Piping Connections Liquid (mm) 9.5 (Flared) 9.5 (Brazed)
  Gas (mm) 15.9 (Flared) 19.1 (Flared) 19.1 (Brazed) 22.2 (Brazed)

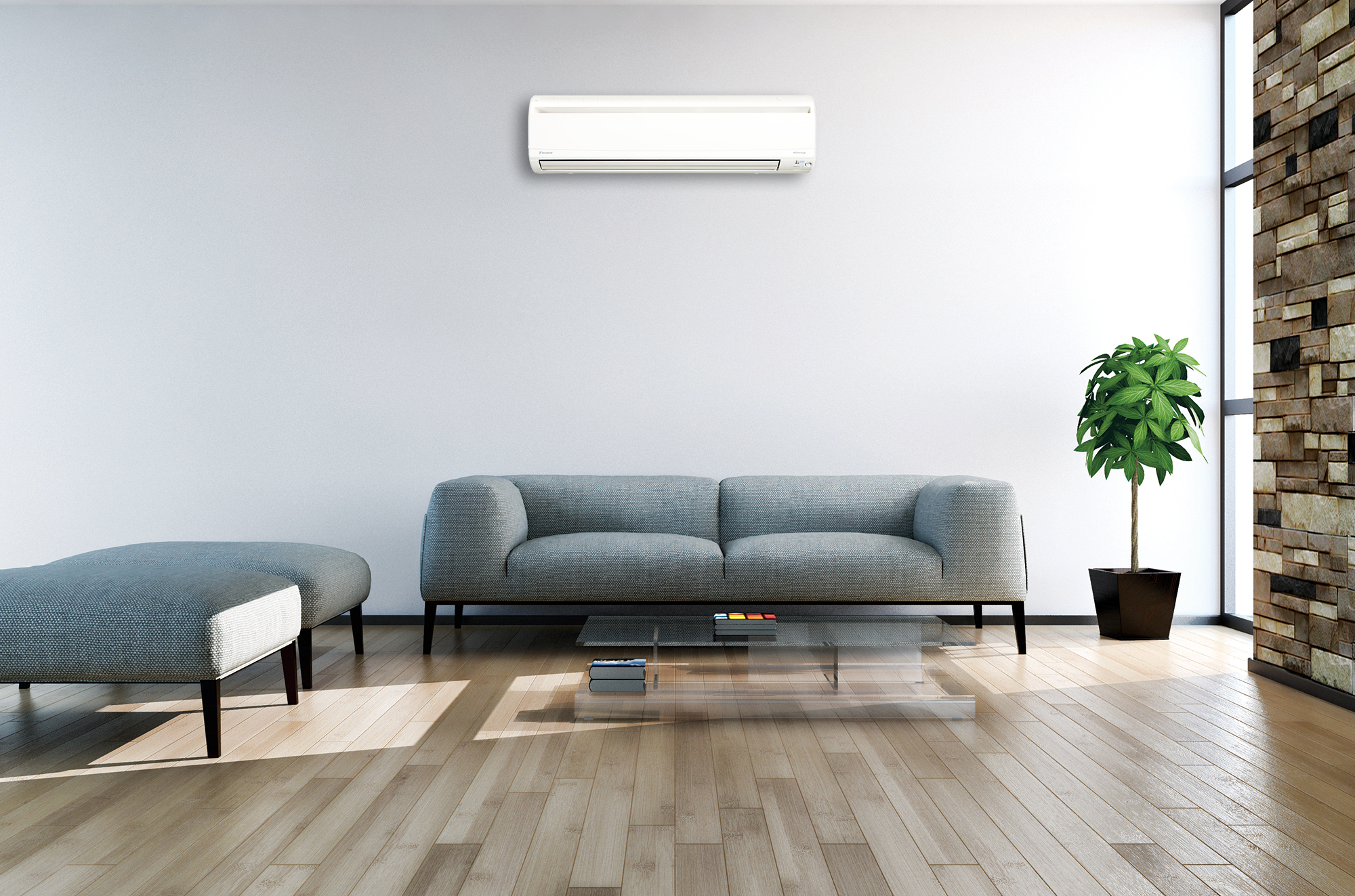

Series Zena Wall Mounted Wall Mounted
Indoor Unit CTXG25PVMAW CTXG35PVMAW CTXG50PVMAW CTXG25PVMAS CTXG35PVMAS CTXG50PVMAS FTXS20KVMA FTXS25KVMA FTXS35KVMA FTXS50KAVMA FTXS60KAVMA FTXS71KAVMA
Power Supply   1 phase, 230-240V, 50Hz 1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0 2.5 3.5 5.0 2.0 2.5 3.5 5.0 6.0 7.1
Front Panel Colour   White Silver  White
Airflow Rate (H) Cool (l/s) 138 177 180 138 177 180 161 188 245 270 290
  Heat (l/s) 173 198 207 173 198 207 175 191 270 290 358
Sound Level (H/L/SL) Cool (dBA) 38/25/21 45/26/22 46/35/32 38/25/21 45/26/22 46/35/32 38/25/22 42/26/23 44/35/32 45/36/33 46/37/34
  Heat (dBA) 41/28/21 45/29/22 47/35/32 41/28/21 45/29/22 47/35/32 39/28/25 42/29/26 42/33/30 44/35/32 46/37/34
Sound Power Level (H) Cool (dBA) 54 61 63 54 61 63 54 58 60 61 62
  Heat (dBA) 57 61 63 57 61 63 55 58 58 60 62
Fan Speed   5 steps, quiet and automatic 5 steps, quiet and automatic
Dimensions (HxWxD) (mm) 303x998x212 295x800x215  290x1050x250
Machine Weight (kg) 12 9 10 12
Piping Connections Liquid (mm) 6.4 (Flared) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared) 9.5 (Flared) 12.7 (Flared) 9.5 (Flared) 12.7 (Flared) 15.9 (Flared)
  Drain (mm) 18 I.D. 14 / O.D. 18 18

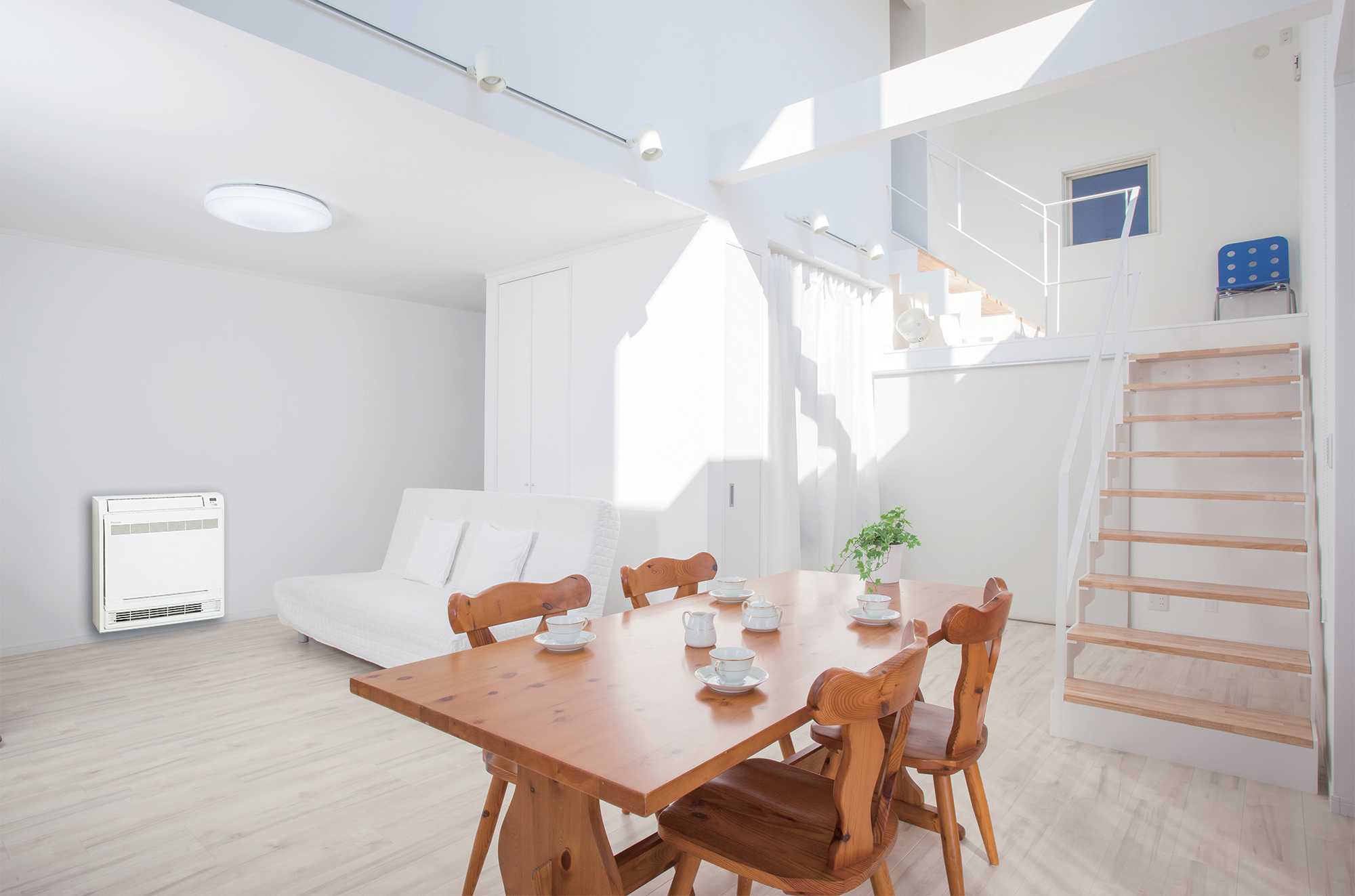

Series Floor Standing
Indoor Unit FVXS25KV1A FVXS35KV1A FVXS50KV1A
Power Supply   1 phase, 220-240V, 50Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0
Front Panel Colour   White
Airflow Rate (H) Cool (l/s) 137 142 178
  Heat (l/s) 147 157 197
Sound Level (H/L/SL) Cool (dBA) 38/26/23 39/27/24 44/36/32
  Heat (dBA) 38/26/23 39/27/24 45/36/32
Sound Power Level (H) Cool (dBA) 47 48 53
  Heat (dBA) 47 48 54
Fan Speed   5 steps, quiet and automatic
Dimensions (HxWxD) (mm) 600x700x210
Machine Weight (kg) 14
Piping Connections Liquid (mm) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared)
  Drain (mm) 20

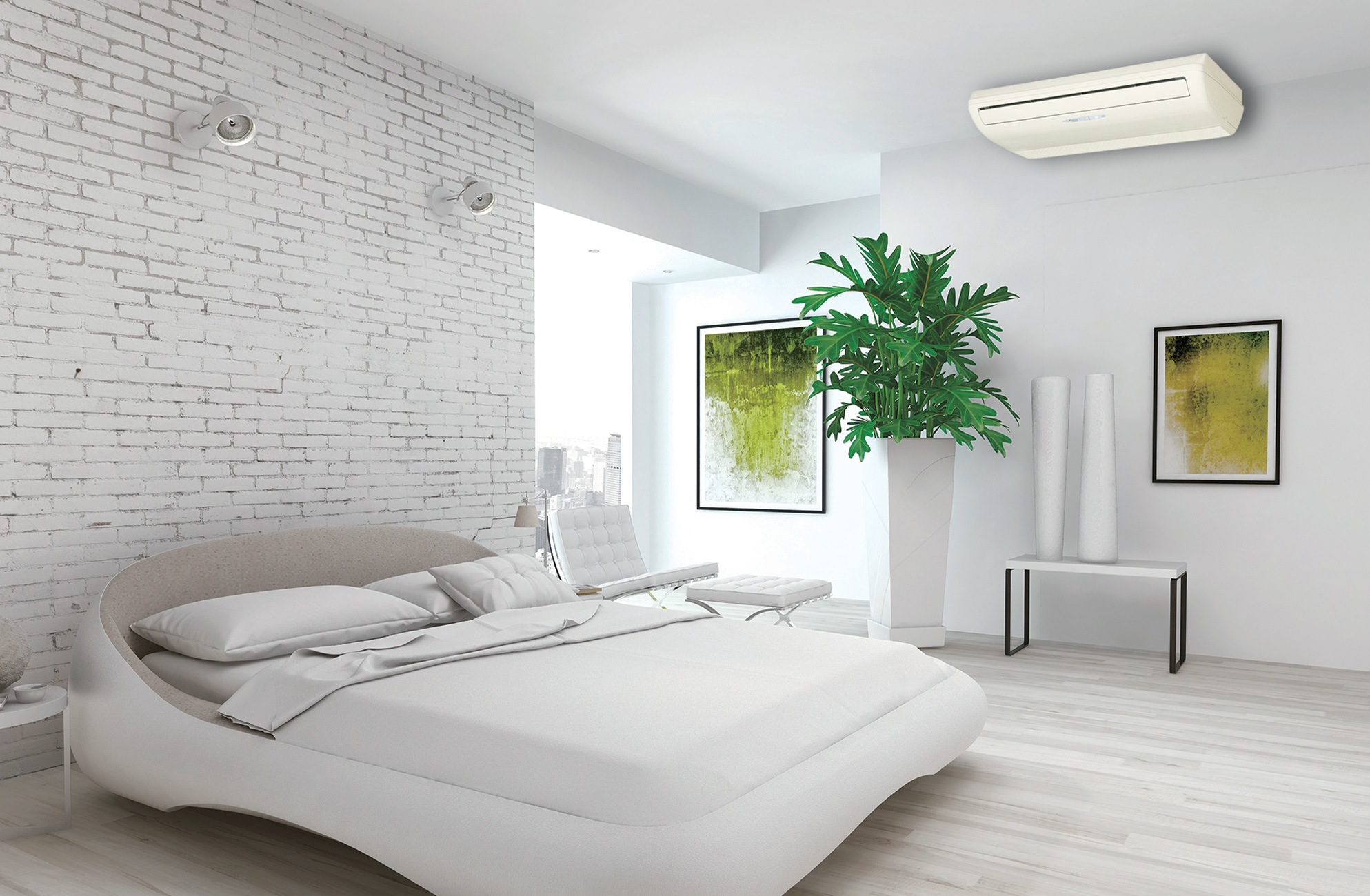

Series  Floor/Ceiling Suspended Dual
Indoor Unit FLXS25BVMA FLXS35GVMA FLXS50GVMA FLXS60GVMA
Power Supply   1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0 6
Front Panel Colour   Almond White
Airflow Rate (H) Cool (l/s) 126 143 190 200
  Heat (l/s) 153 163 202 213
Sound Level (H/L/SL) Cool (dBA) 37/31/28 38/32/29 47/39/36 48/41/39
  Heat (dBA) 37/31/29 39/33/30 46/35/33 47/37/34
Sound Power Level (H) Cool (dBA) 53 54 63 64
  Heat (dBA) 53 55 62 63
Fan Speed   5 steps, quiet and automatic
Dimensions (HxWxD) (mm)  490x1050x200
Machine Weight (kg)  16 17
Piping Connections Liquid (mm) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared)
  Drain (mm) 18



Series Compact Bulkhead Bulkhead
Indoor Unit CDXS25EAVMA CDXS35EAVMA FDXS25CVMA FDXS35CVMA FDXS50CVMA FDXS60CVMA
Power Supply   1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 2.5 3.5 2.5 3.5 5.0 6.0
Airflow Rate (H) Cool (l/s) 145 158 167 200 267
  Heat (l/s) 145 158 167 200 267
Sound Level (H/L/SL) Cool (dBA) 35/31/29 37/33/31 38/34/32
  Heat (dBA) 35/31/29 37/33/31 38/34/32
Sound Power Level (H) Cool (dBA)  53 55 56
  Heat (dBA)  53 55 56
Fan Speed   5 steps, quiet and automatic
Dimensions (HxWxD) (mm)  200x700x620 200x900x620 200x1100x620
Machine Weight (kg)  21 25 25 27 30
Piping Connections Liquid (mm)  6.4 (Flared)
  Gas (mm)  9.5 (Flared) 12.7 (Flared)
  Drain (mm)  VP20  (ID 20 / OD 26)
External Static Pressure (Pa) 30 40



Series Compact Cassette
Indoor Unit FFQ25BV1B FFQ35BV1B FFQ50BV1B FFQ60BV1B
Power Supply   1 phase, 220-240V, 50Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0 6.0
Front Panel Colour   White
Airflow Rate (H) Cool (l/s) 150 167 200 250
  Heat (l/s) 150 167 200 250
Sound Level (H/L) Cool (dBA) 29.5/24.5 32/25 36/37 41/32
  Heat (dBA) 29.5/24.5 32/25 36/37 41/32
Sound Power Level (H) Cool (dBA) 46.5 49 53 58
  Heat (dBA) 46.5 49 53 58
Fan Speed   2 steps
Dimensions (HxWxD) (mm) 286x575x575
Machine Weight (kg) 17.5
Piping Connections Liquid (mm) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared)
  Drain (mm) VP20 (OD 26 / ID 20)



Series Slim-Line Ducted
Indoor Unit FXSQ20PVE FXSQ25PVE FXSQ32PVE FXSQ40PVE FXSQ50PVE FXSQ63PVE FXSQ80PVE FXSQ100PVE FXSQ125PVE FXSQ140PVE
Power Supply   1 phase, 220-240V/220V, 50/60Hz
Capacity Cool (kW) 2.2 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14.0 16.0
  Heat (kW) 2.5 3.2 4.0 5.0 6.3 8.0 10.0 12.5 16.0 18.0
Airflow Rate (H) (l/s) 150 158 250 283 350 383 533 617 650
Sound Level (H/M/L) (dBA) 33/30/28 34/32/30 36/33/30 34/32/29 36/32/29 37.5/34/30 39/35/32 42/38.5/35 43/40/36
Sound Power Level (H) (dBA) 61 62 64 62 64 65.5 67 70 71
Fan Speed   3 steps
Dimensions (HxWxD) (mm) 245x550x800 245x700x800 245x1000x800 245x1400x800 245x1550x800
Machine Weight (kg) 25 27 35 37 46 47 52
Piping Connections Liquid (mm) 6.4 (Flared) 9.5 (Flared)
  Gas (mm) 12.7 (Flared) 15.9 (Flared)
  Drain (mm) VP25 (OD 32 / ID 25)
External Static Pressure (Pa) 30-150 50-150 50-140



Series Ceiling Concealed Ducted
Indoor Unit FXDYQ80MAV1 FXDYQ100MAV1 FXDYQ125MAV1 FXDYQ145MAV1 FXMQ160PV1A FXMQ180PV1A FXMQ200PV1A FXMQ250PV1A
Power Supply   1 phase, 220-240V, 50Hz
Capacity Cool (kW) 8.8 11.2 13.9 16.0 18.0 20.0 22.4 28.0
  Heat (kW) 9.9 12.5 16.0 18.4 20.0 22.4 25.0 31.5
Airflow Rate (H) (l/s) 510 778 852 957 1120 1160 1200 1400
Sound Level (H) (dBA) 45 46 48 51 45 44 46
Fan Speed   2 steps 3 steps
Dimensions (HxWxD) (mm) 360x1168x869 360x1478x899 470x1333x919
Machine Weight (kg) 50 60 65 66 70 79 85
Piping Connections Liquid (mm) 9.5 (Flared) 9.5 (Brazed)
  Gas (mm) 15.9 (Flared) 19.1 (Brazed) 22.2 (Brazed)
  Drain (mm) VP25 (O.D. 32 / I.D. 25) BSP 3/4 inch Internal Thread
External Static Pressure (Pa) 120 217 210 250



VRV-S Multi Split System

With the emerging trend towards double storey homes on smaller blocks, the compact size and horizontal discharge design of Daikin's VRV-S multi split air conditioning system makes it the ideal solution for the contemporary home.
