SUPER MULTI NX (R32)

MAKE EVERY ROOM A COMFORT ZONE

SUPER MULTI NX (R32)

  • Available in
    Reverse Cycle (Heating or Cooling)
    Cooling Only
  • Capacities
    Reverse Cycle: 5.2kW, 6.8kW, 8.0kW, 10.0kW
    Cooling Only: 5.2kW, 6.8kW, 8.0kW, 10.0kW
  • Refrigerant
    R32

With a wide variety of indoor units available, it is easy to select a model that matches your home décor and blends in unobtrusively.

A Daikin Super Multi NX (R32) air conditioning system gives you the ability to control indoor units individually. This means the ideal temperature can be maintained while ensuring running cost are kept low as only rooms requiring air conditioning are switched on.

The new Super Multi NX also features R32 refrigerant to deliver more efficient cooling and heating with less risk of harm to the environment.

Warranty info

MEPS
Minimum Energy
Performance Standards
learn more

All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Key Features

It's the unique features of Daikin products that makes us the world leader.

  • R32-Refrigerant

    R32 Refrigerant

    Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.

  • Heat Plus

    Heat Plus

    Wall mounted units can rapidly warm up the room with 60⁰C discharge temp for 30 minutes.

  • Priority-Setting

    Priority Room Comfort

    Allows you to shift up to 50% capacity from the other rooms to your priority room when required for rapid cooling or heating of that space.

  • Intelligent Comfort 2

    Intelligent Comfort

    Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.

  • Truly Versatile

    Truly Versatile

    Up to 5 indoor units can be connected to the outdoor unit for total home air conditioning.

  • Individual Comfort

    Comfort for Everyone

    Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants.

5 year
5 Year Warranty
learn more

Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia

Technical Specifications

Available Options:

  • System: Reverse Cycle or Cooling Only
  • Capacities: Reverse Cycle: 5.2kW, 6.8kW, 8.0kW, 10.0kW, Cooling Only: 5.2kW, 6.8kW, 8.0kW, 10.0kW
  • Indoor Type: Wall Mounted, Bulkhead, Ducted & Cassettes
  • Power Supply: 1 Phase, 220-240, 50Hz
  • Refrigerant: R32

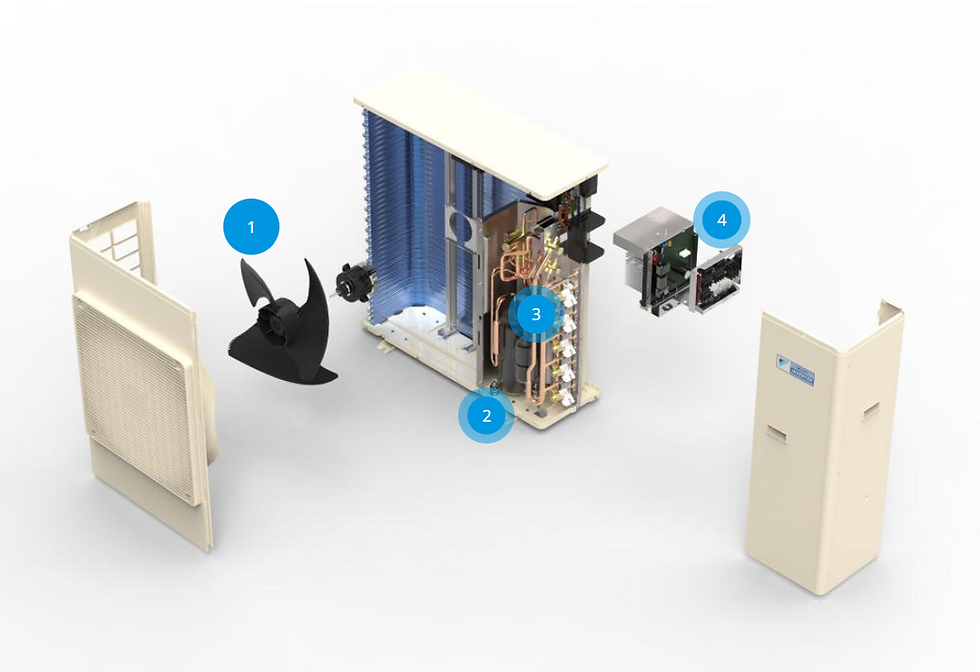

  • Outdoor Units

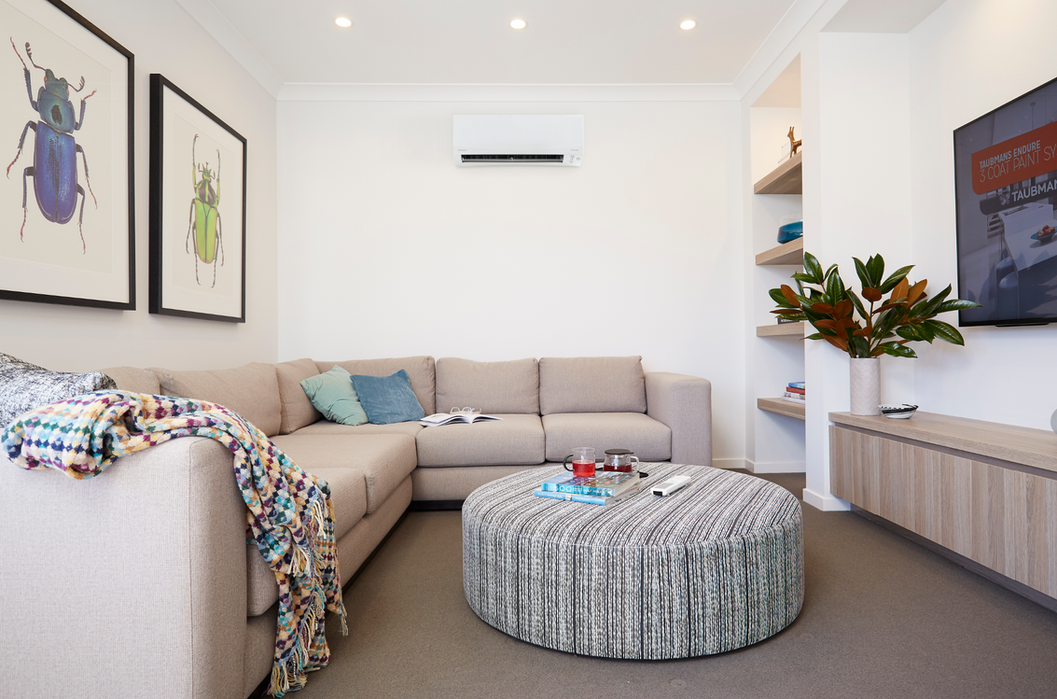

  • Wall Mounted

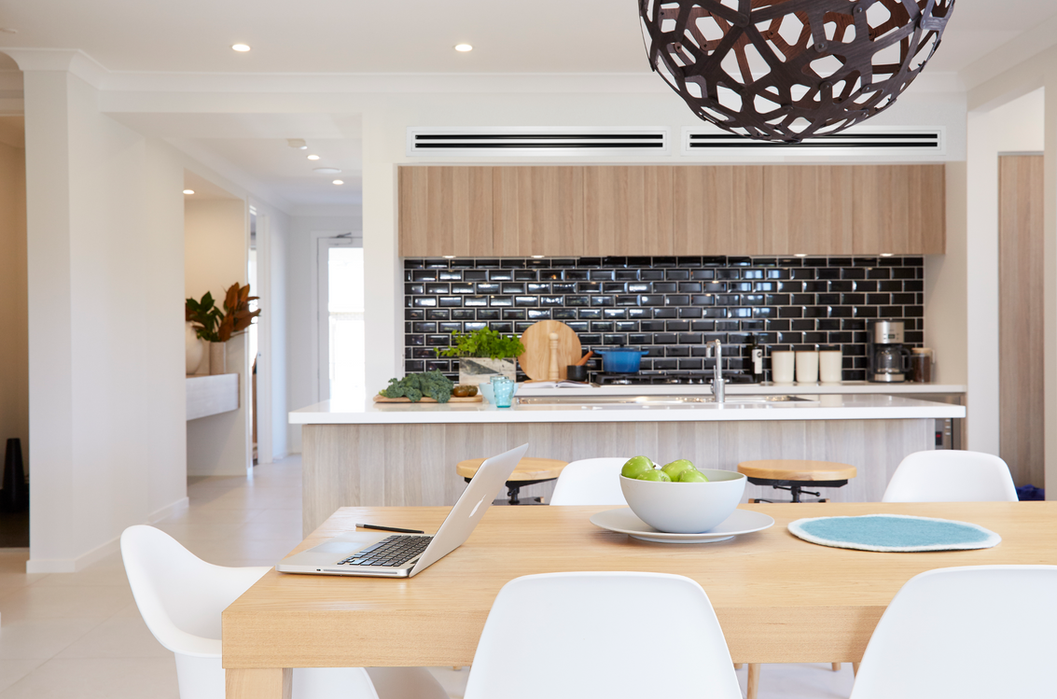

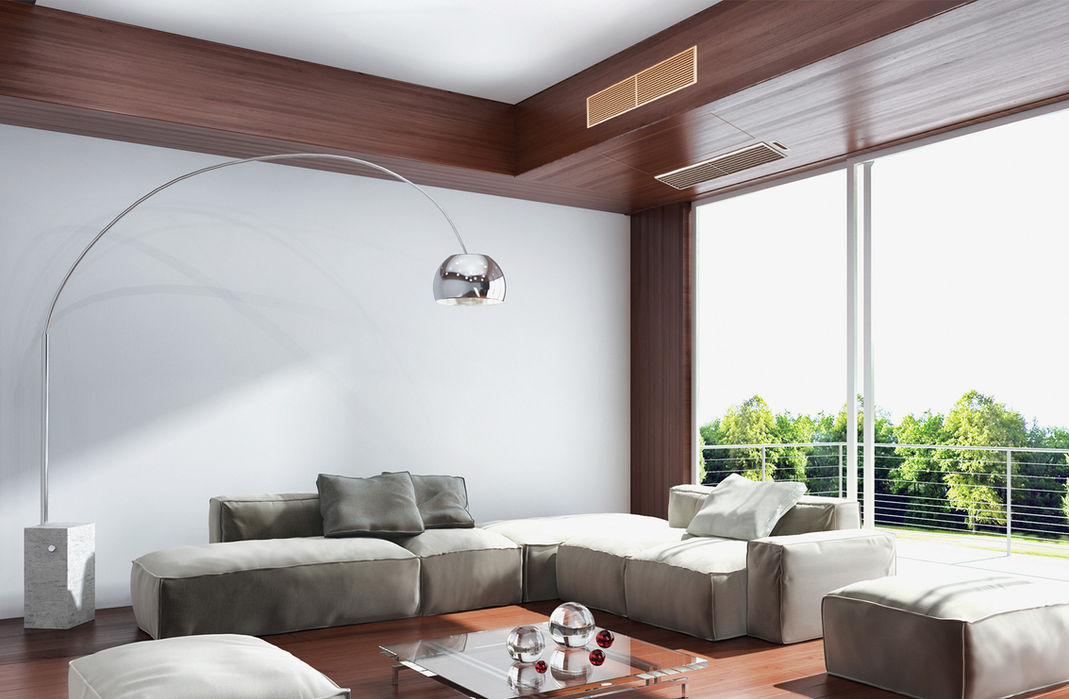

  • Bulkhead
  • Slim-Line Ducted

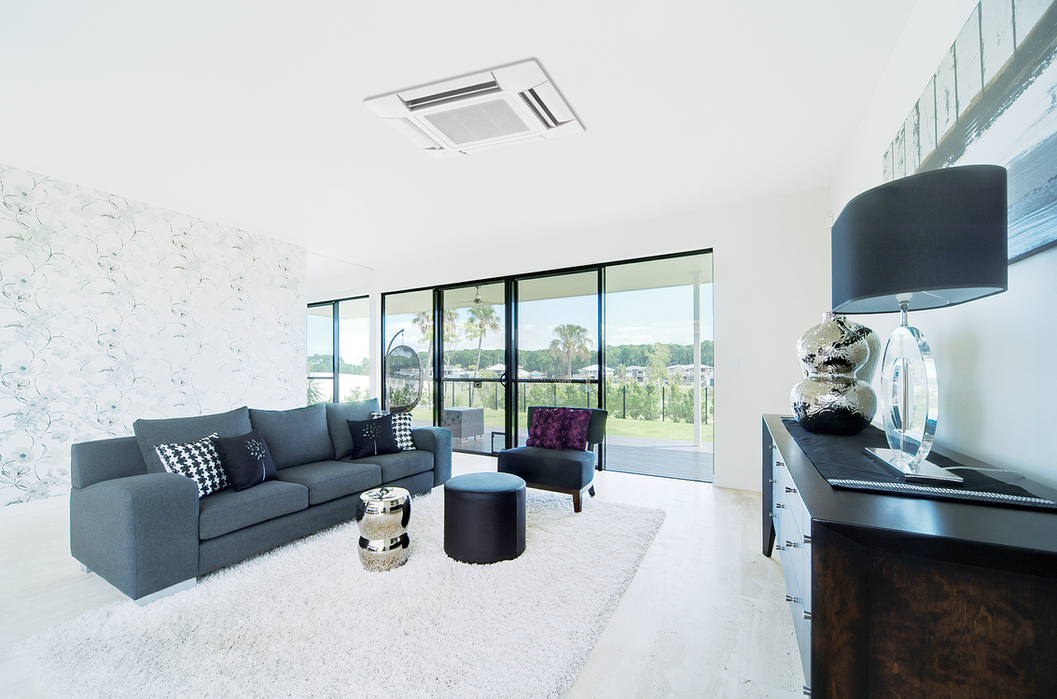

  • Compact Cassette
Series Reverse Cycle Cooling Only
Outdoor Unit 3MXM52RVMA 4MXM68RVMA 4MXM80RVMA 5MXM100RVMA 3MKM52RVMA 4MKM68RVMA 4MKM80RVMA 5MKM100RVMA
Power Supply    1 phase, 220-240V/220-230V, 50/60Hz       1 phase, 220-240V/220-230V, 50/60Hz
Rated Capacity Cool (kW) 5.2 6.8 8.0 10.0 5.2 6.8 8.0 10.0
  Heat (kW) 6.8 8.6 9.6 11.0 -
Max Connectable Indoor Units   3 4 5 3 4 5
Max Connected Indoor Unit Capacity (kW) 9 11 14.5 15.6 10 11 14.5 15.6
Casing Colour    Ivory White  Ivory White
Compressor Type    Hermetically Sealed Swing Type  Hermetically sealed swing type
Refrigerant Type    R32  R32
Sound Level (Rated/Quiet) Cool (dBA) 45/43 47/44 48/45 48/46 45/43 47/44 48/45 48/46
  Heat (dBA) 47/45 48/46 49/47 -
Sound Power Level (H) Cool (dBA) 57 59 60 57 59 60
  Heat (dBA) 59 60 61 -
Dimensions (HxWxD) (mm) 695x930x350 990x940x320 695x930x350 990x940x320
Weight (kg) 53 56 61 83 53 56 61 83
Operation Range Cool (°CDB) -10 to 46 -10 to 46
  Heat (°CWB) -15 to 18 -
Max Piping Length Total (m) 50 60 70 80 50 60 70 80
  Per Room (m) 30 30
Additional Charge (g/m) 20 (for 40m or more) 20 (for 40m or more)
Max Installation Height Difference (m) 15 (between indoor and outdoor units) / 7.5 (between indoor units) 15 (between indoor and outdoor units) / 7.5 (between indoor units)



Series Wall Mounted (Reverse Cycle) Wall Mounted (Cooling Only)
Indoor Unit CTXM20RVMA CTXM25RVMA CTXM35RVMA CTXM46RVMA CTXM50RVMA CTXM60RVMA CTXM71RVMA CTXM85RVMA CTXM95RVMA CTXM20RVMA CTXM25RVMA CTXM35RVMA CTXM46RVMA CTXM50RVMA CTXM60RVMA CTXM71RVMA
Power Supply   1 phase, 220-240V/220-230V, 50/60Hz     1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 2.0 2.5 3.5 4.6 5.0 6.0 7.1 8.5 9.5 2.0 2.5 3.5 46 5.0 6.0 7.1
Front Panel Colour    White  White
Airflow Rate (H) Cool (l/s) 155 173 188 203 282 325 333 398 400 160 178 195 203 282 325 333
  Heat (l/s) 160 173 188 202 287 333 328 422 413 -
Sound Level (H/L/SL) Cool (dBA) 38/25/22 40/25/19 42/26/19 44/35/26 45/35/28 48/36/29 49/37/30 51/40/37 53/42/38 38/25/22 40/25/19 42/26/19 44/35/26 45/35/28 48/36/29 49/37/30
  Heat (dBA) 39/28/25 40/28/20 42/26/19 43/33/26 45/33/28 48/33/29 49/35/30 51/38/35 52/38/35 -
Sound Power Level (H) Cool (dBA) 52 54 56 58 59 62 63 65 67 52 54 56 58 59 62 63
  Heat (dBA) 53 54 56 57 59 62 63 65 66 -
Fan Speed   5 steps, quiet and automatic 5 steps, quiet and automatic
Dimensions (HxWxD) (mm) 285x770x223 295x990x263 340x1200x259 285x770x223 295x990x263
Machine Weight (kg) 9 13 17 18 8 9 13
Piping Connections Liquid (mm) 6.4 (Flared) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared) 15.9 (Flared) 9.5 (Flared) 12.7 (Flared) 15.9 (Flared)
  Drain (mm) 16 16



Series Bulkhead (Reverse Cycle & Cooling Only)
Indoor Unit CDXP25RVMA CDXP35RVMA CDXM25RVMA CDXM35RVMA CDXM50RVMA CDXM60RVMA CDXM71RVMA
Power Supply   1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 2.5 3.5 2.5 3.5 5.0 6.0 7.1
Airflow Rate (H) Cool (l/s) 145 158 167 200 267
  Heat (l/s) 145 158 167 200 267
Sound Level (H/L/SL) Cool (dBA) 35/31/29 37/33/31 38/34/32
  Heat (dBA) 35/31/29 37/33/31 38/34/32
Sound Power Level (H) Cool (dBA) 49 51 52
  Heat (dBA) 49 51 52
Fan Speed   5 steps, quiet and automatic
Dimensions (HxWxD) (mm)  200x700x620 200x900x620 200x1100x620
Machine Weight (kg)  21 25 27 30
Piping Connections Liquid (mm)  6.4 (Flared)
  Gas (mm)  9.5 (Flared) 12.7 (Flared) 15.9 (Flared)
  Drain (mm)  VP20  (ID 20 / OD 26)
External Static Pressure (Pa) 30 40



Series Ducted (Reverse Cycle & Cooling Only)
Indoor Unit FMA50RVMA FMA60RVMA FMA71RVMA
Power Supply   1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 5.0 6.0 7.1
Airflow Rate (H) Cool (l/s) 300 383
  Heat (l/s) 300 383
Sound Level (H/L/SL) Cool (dBA) 35/31 38/33
  Heat (dBA) 35/31 38/33
Sound Power Level (H) Cool (dBA) 49 52
  Heat (dBA) 49 52
Fan Speed   3 steps
Dimensions (HxWxD) (mm) 245x1000x800
Machine Weight (kg) 37
Piping Connections Liquid (mm) 6.4
  Gas (mm) 12.7 (Flared) 15.9 (Flared)
  Drain (mm)  VP25  (ID 25 / OD 32)
External Static Pressure (Pa) 50 - 150



Series Compact Cassette (Reverse Cycle & Cooling Only)
Indoor Unit FFA25RV1A FFA35RV1A FFA50RV1A FFA60RV1A
Power Supply   1 phase, 220-240V, 50Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0 6.0
Front Panel Colour   White
Airflow Rate (H) Cool (l/s) 150 167 200 250
  Heat (l/s) 150 167 200 250
Sound Level (H/L) Cool (dBA) 33/27 36/29 38/30 42/34
  Heat (dBA) 33/27 36/28 38/28 42/34
Sound Power Level (H) Cool (dBA) 46 49 51 55
  Heat (dBA) 46 49 51 55
Fan Speed   2 steps
Dimensions (HxWxD) (mm) 286x575x575
Machine Weight (kg) 17.5
Piping Connections Liquid (mm) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared)
  Drain (mm) VP20 (OD 26 / ID 20)



Super Multi NX (R32)

A Daikin Multi Split Air Conditioner can heat or cool multiple rooms using only one outdoor unit, and allows individual control of the air conditioning in each room. This not only optimises comfort but saves on running costs by only heating or cooling rooms as required.
