Powerful Performance

XL Series

Powerful airflow delivery, large capacity models designed for large open plan living. Available in two ranges, XL and the more energy efficient XL Premium.

XL Series

  • Available in
    Reverse Cycle (Heating or Cooling)
    Cooling Only
  • Capacities
    XL Premium - Reverse Cycle & Cooling Only: 8.5kW & 9.5kW
    XL - Reverse Cycle: 8.0kW & 9.0kW
  • Refrigerant
    R32

Powerful airflow delivery, large capacity models designed for large open plan living. Available in two ranges, XL and the more energy efficient XL Premium.

Operation Manual Warranty info

Key Features

It's the unique features of Daikin products that makes us the world leader.

  • R32-Refrigerant

    R32 Refrigerant

    Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.

  • Inverter Powerful Operation

    Powerful Operation

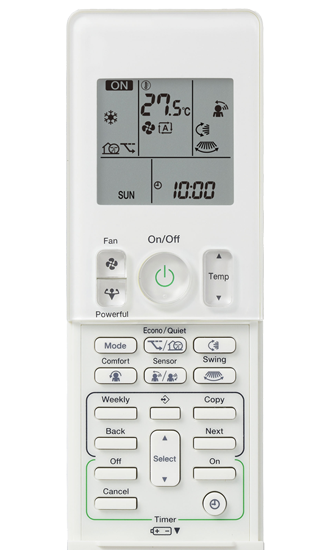

    Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20 minute period, even if the unit is already operating at high capacity.

  • Intelligent Comfort

    Intelligent Eye

    An intelligent infrared human presence sensor that automatically enables energy saving operations when the room is unoccupied for 20 minutes.

  • Air-Purification

    Air Purification

    Enzyme blue deodorising air purification filter traps microscopic particles, decomposes odours and even deactivates bacteria.

  • 3D-Airflow

    3-D Airflow

    A combination of vertical and horizontal auto swing to circulate air more effectively in larger rooms.

  •  Comfort-Mode

    Comfortable Mode

    The flap changes the delivery angle to horizontal for cooling and vertical for heating operation, to prevent cold or warm air from blowing directly onto your body.

Most Trusted Brand 2023
Choose a winner
learn more

Daikin was recently awarded Australia’s Most Trusted Brand for Air Conditioners! We’re proud that thousands of Australians put their trust in our brand!

5 year
5 Year Warranty
learn more

Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia

Split Systems

Daikin Split System Air Conditioners are ideal for air conditioning one room or a specific area of a home. Discreet wall mounted and compact floor standing units are all part of the Daikin range.

Technical Specifications

Available Options:

  • System: XL Premium: Reverse Cycle & Cooling Only, XL: Reverse Cycle
  • Capacities: XL Premium - Reverse Cycle & Cooling Only: 8.5kW & 9.5kW, XL - Reverse Cycle: 8.0kW & 9.0kW
  • Indoor Type: Wall Mounted
  • Refrigerant: R32

XL Premium - Reverse Cycle and Cooling Only

  Reverse Cycle Cooling Only
Indoor Unit FTXM85WVMA FTXM95WVMA FTKM85WVMA FTKM95WVMA
Outdoor Unit RXM85WVMA RXM95WVMA RKM85WVMA RKM95WVMA
Rated Capacity Cool (kW) 8.5 9.5 8.5 9.5
Heat (kW) 9.0 10.3 N/A N/A
Capacity Range Cool (kW) 2.0-10.5 2.0-11.2 2.0-10.5 2.0-11.2
Heat (kW) 1.9-11.6 1.9-12.0 N/A N/A
Indoor Airflow Rate (H) Cool (l/s) 380 410 380 410
Heat (l/s) 403 425 N/A N/A
Indoor Fan Speeds   5 steps, quiet and automatic
Star Rating (Hot/Avg/Cold)
ZERL (Residential)
Cool 3.5/3.0/3.5 3.5/3.0/3.0 3.5/3.0/3.5 3.5/3.0/3.0
Heat 2.5/2.0/2.0 2.5/2.0/1.5 N/A N/A
Front Panel Colour   White
Power Supply   1 phase, 220-240V, 50Hz
Power Input (Rated) Cool (kW) 2.35 2.8 2.35 2.80
Heat (kW) 2.66 3.1 N/A N/A
E.E.R/C.O.P Cool/Heat 3.62/3.38 3.39/3.32 3.62 3.39
TCSPF (Residential) Hot/Avg/Cold 5.28/4.91/5.15 5.01/4.69/4.94 5.28/4.91/5.15 5.01/4.69/4.94
HSPF (Residential) Hot/Avg/Cold 4.47/3.93/3.50 4.26/3.74/3.24 N/A N/A
A.E.E.R/A.C.O.P Cool/Heat 3.59/3.36 3.37/3.31 3.59 / N/A 3.37 / N/A
Dimensions (HxWxD) Indoor (mm) 329x1240x278 329x1240x278
Outdoor (mm) 990x940x320 990x940x320
Weight Indoor (kg) 19 19 19 19
Outdoor (kg) 77 77 77 77
Compressor Type Hermetically Sealed Swing Type
Refrigerant Type R32
Max Pipe Length (m) 30 30 30 30
Max Level Difference (m) 20 20 20 20
Pipe Sizes Liquid (mm) 6.4 6.4 6.4 6.4
Gas (mm) 15.9 15.9 15.9 15.9
Outdoor Operating Range Cool (°CDB) -10 to 46
Heat (°CWB) -15 to 18 N/A N/A
Indoor Sound Level (H/SL) Cool (dBA) 49/35 51/36 49/35 51/36
Heat (dBA) 49/33 51/33 N/A N/A
Outdoor Sound Level (H/SL) Cool (dBA) 54/51 54/51 54/51 54/51
Heat (dBA) 55/51 55/51 N/A N/A
Outdoor EPA Sound Power Level (H) Cool (dBA) 66 66 66 66
Heat (dBA) 67 67 N/A N/A

XL - Reverse Cycle

Indoor Unit FTXV80WVMA FTXV90WVMA
Outdoor Unit RXV80WVMA RXV90WVMA
Rated Capacity Cool (kW) 8.0 9.0
Heat (kW) 9.0 10.3
Capacity Range Cool (kW) 2.0-10.5 2.0-11.2
Heat (kW) 1.9-11.6 1.9-12.0
Indoor Airflow Rate (H) Cool (kW) 410 440
Heat (l/s) 403 425
Indoor Fan Speeds   5 steps, quiet and automatic
Star Rating (Hot/Avg/Cold) Cool 3.5/3.0/3.5 3.0/3.0/3.0
ZERL (Residential) Heat 2.5/2.0/1.5 2.5/2.0/1.5
Front Panel Colour   Ivory White
Power Supply   1 phase, 220-240V, 50Hz
Power Input (Rated) Cool (kW) 2.17 2.65
Heat (kW) 2.75 3.15
E.E.R/C.O.P Cool/Heat 3.69/3.27 3.40/3.27
TCSPF (Residential) Hot/Avg/Cold 5.26/4.90/5.12 4.99/4.66/4.90
HSPF (Residential) Hot/Avg/Cold 4.29/3.79/3.40 4.10/3.61/3.15
A.E.E.R/A.C.O.P Cool/Heat 3.66/3.25 3.38/3.25
Dimensions (HxWxD) Indoor (mm) 329x1240x278
Outdoor (mm) 990x940x320
Weight Indoor (kg) 19 19
Outdoor (kg) 77 77
Compressor Type   Hermetically Sealed Swing Type
Refrigerant Type   R32
Max Pipe Length (m) 30 30
Max Level Difference (m) 20 20
Pipe Sizes Liquid (mm) 6.4 6.4
Gas (mm) 15.9 15.9
Outdoor Operating Range Cool (°CDB) -10 to 46
Heat (°CWB) -15 to 18
Indoor Sound Level (H/SL) Cool (dBA) 51/37 53/38
Heat (dBA) 51/35 52/35
Outdoor Sound Level (H/SL) Cool (dBA) 54/51 54/51
Heat (dBA) 55/51 55/51
Outdoor EPA Sound Power Level (H) Cool (dBA) 66 66
Heat (dBA) 67 67
