CORA
-
Available inReverse Cycle (Heating & Cooling)
Cooling Only -
CapacitiesReverse Cycle: 2.0kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW, 8.5kW, 9.4kW
Cooling Only: 2.0kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW, 8.5kW, 9.4kW -
RefrigerantR32
Delivered in understated confidence, the Daikin Cora series features whisper quiet operation, industry leading energy efficiency and superior comfort levels without compromising on style.
Able to blend in harmoniously with modern bedrooms and living areas with its smooth contours and flat panel design, nothing compares to creating that ideal family sanctuary that makes you feel right at home all year round.
A Sensitive
Smart Choice
learn moreSmart Choice
Approved by the National Asthma Council Australia, Daikin air purifiers and split systems are authorised to display the Sensitive Choice butterfly symbol.
Key Features
It's the unique features of Daikin products that makes us the world leader.
-
R32 Refrigerant
Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.
-
2-Area Intelligent Eye
An infrared human presence sensor helps prevent cold draughts and enables energy saving operations when the room is unoccupied for 20 minutes.
-
Coanda Airflow
Discharge louvres designed to stream air along the ceiling for longer throws and delivering rapid cooling and even temperature distribution.
-
Air Purification
Titanium apatite deodorising air purification filter traps microscopic particles, decomposes odours and even deactivates bacteria.
-
Whisper Quiet
When in quiet mode, the indoor unit noise level drops to a whisper quiet 19dBA (20, 25 & 35 Class Model). You won't even notice that it's on.
-
Precision Control
Room temperature can be set in increments of 0.5°C to ensure optimal comfort conditions all year round.
R32 Refrigerant
More Info
Daikin Cora
Delivered in understated confidence, the Daikin Cora series features whisper quiet operation, industry leading energy efficiency and superior comfort levels without compromising on style.

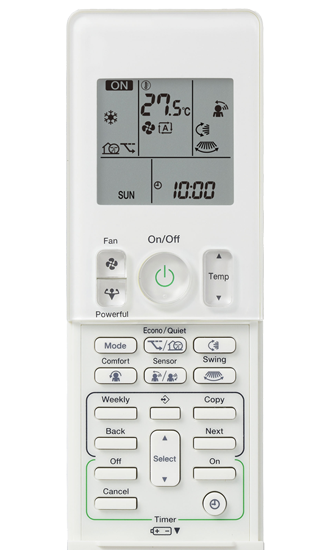

Controllers
Operation Timers
Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.
Quiet Mode
Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.
Comfort Mode
Airflow is optimised to stream upwards during cooling and downwards during heating.
Powerful Mode
Gives a boost in cooling or heating for 20 minutes beyond normal capacity.
Program Dry Function
Automatic intelligent airflow and temperature control to reduce room humidity.
Econo Mode
Power consumption of the system is limited to prevent tripping your circuit breaker.
Direct Connection
For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.
Wi-Fi Connection
A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.
Internet Connection
All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.
5 Year Warranty
learn more
Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia

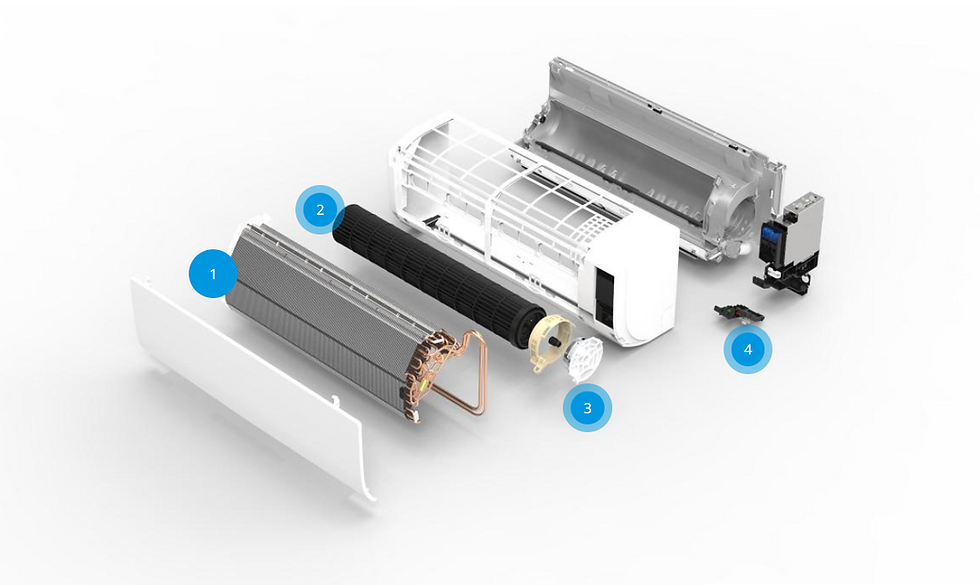

CORA Technology
Technical Specifications
Available Options:
- System: Reverse Cycle or Cooling Only
- Capacities: Reverse Cycle: 2.0kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW, 8.5kW, 9.4kW, Cooling Only: 2.0kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW, 8.5kW, 9.4kW
- Indoor Type: Wall Mounted
- Power Supply: 1 Phase, 220-240, 50Hz
- Refrigerant: R32
- Reverse Cycle
- Cooling Only
| Indoor Unit | FTXV20UVMA | FTXV25UVMA | FTXV35UVMA | FTXV46UVMA | FTXV50UVMA | FTXV60UVMA | FTXV71UVMA | FTXV85LVMA | FTXV95LVMA | |
| Outdoor Unit | RXV20UVMA | RXV25UVMA | RXV35UVMA | RXV46UVMA | RXV50UVMA | RXV60UVMA | RXV71UVMA | RXV85LVMA | RXV95LVMA | |
| Rated Capacity | Cool (kW) | 2.0 | 2.5 | 3.5 | 4.6 | 5.0 | 6.0 | 7.1 | 8.5 | 9.4 |
| Heat (kW) | 2.7 | 3.2 | 3.7 | 4.7 | 6.0 | 7.2 | 8.0 | 9.0 | 10.3 | |
| Capacity Range | Cool (kW) | 0.9-2.8 | 0.9-3.7 | 0.9-4.2 | 0.9-5.5 | 1.1-6.7 | 1.1-7.5 | 2.0-8.9 | 2.0-10.5 | 2.0-11.2 |
| Heat (kW) | 0.9-4.3 | 0.9-5.3 | 0.9-5.3 | 1.0-6.7 | 1.0-8.0 | 1.0-8.6 | 2.0-10.6 | 1.9-11.6 | 1.9-12.0 | |
| Indoor Airflow Rate (H) | Cool (l/s) | 152 | 173 | 175 | 203 | 267 | 310 | 310 | 340 | 353 |
| Heat (l/s) | 157 | 168 | 183 | 202 | 287 | 333 | 328 | 402 | 393 | |
| Indoor Fan Speeds | 5 steps, quiet and automatic | |||||||||
| Star Rating (Hot/Avg/Cold) | Cool | 5/4.5/4.5 | 5.5/5/5 | 4.5/4.5/4.5 | 4/3.5/3.5 | 5/4/4.5 | 4/3.5/4 | 3.5/3/3 | - | - |
| ZERL (Residential) | Heat | 3/2.5/2.5 | 3.5/3/2.5 | 3/2.5/2.5 | 3/2.5/2 | 3/2.5/2.5 | 3/2.5/2 | 3/2.5/2 | - | - |
| Star Rating | Cool | - | - | - | - | - | - | - | 2 | 2 |
| ERL | Heat | - | - | - | - | - | - | - | 2.5 | 2 |
| Front Panel Colour | White | Ivory White | ||||||||
| Power Supply | 1 phase, 220-240V, 50Hz | |||||||||
| Power Input (Rated) | Cool (kW) | 0.43 | 0.52 | 0.88 | 1.22 | 1.28 | 1.64 | 1.99 | 2.49 | 2.79 |
| Heat (kW) | 0.59 | 0.65 | 0.79 | 1.18 | 1.43 | 1.73 | 2.03 | 2.41 | 3.07 | |
| E.E.R/C.O.P | Cool/Heat | 4.65/4.58 | 4.81/4.92 | 3.98/4.68 | 3.77/3.98 | 3.91/4.20 | 3.66/4.16 | 3.57/3.94 | 3.41/3.73 | 3.37/3.36 |
| TCSPF (Residential) | Hot/Avg/Cold | 6.78/6.05/6.22 | 7.33/6.56/6.81 | 6.42/6.03/6.32 | 5.61/5.17/5.42 | 6.53/5.97/6.39 | 5.71/5.33/5.69 | 5.31/4.72/4.90 | - | - |
| HSPF (Residential) | Hot/Avg/Cold | 4.54/4.37/4.14 | 5.02/4.78/4.46 | 4.57/4.40/4.07 | 4.69/4.29/3.93 | 4.92/4.48/4.01 | 4.80/4.37/3.89 | 4.77/4.29/3.83 | - | - |
| A.E.E.R/A.C.O.P | Cool/Heat | 4.58/4.52 | 4.75/4.87 | 3.95/4.64 | 3.74/3.95 | 3.88/4.17 | 3.64/4.14 | 3.48/3.86 | 3.31/3.63 | 3.28/3.28 |
| Dimensions (HxWxD) | Indoor (mm) | 285x770x223 | 295x990x263 | 340x1200x240 | ||||||
| Outdoor (mm) | 550x675x284 | 695x930x350 | 990x940x320 | |||||||
| Weight | Indoor (kg) | 9 | 9 | 9 | 9 | 13 | 13 | 13 | 17 | 18 |
| Outdoor (kg) | 28 | 30 | 30 | 51 | 54 | 54 | 60 | 80 | 82 | |
| Compressor Type | Hermetically Sealed Swing Type | |||||||||
| Refrigerant Type | R32 | |||||||||
| Max Pipe Length | (m) | 20 | 20 | 20 | 30 | 30 | 30 | 30 | 30 | 30 |
| Max Level Difference | (m) | 15 | 15 | 15 | 20 | 20 | 20 | 20 | 20 | 20 |
| Pipe Sizes | Liquid (mm) | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 |
| Gas (mm) | 9.5 | 9.5 | 9.5 | 12.7 | 12.7 | 12.7 | 15.9 | 15.9 | 15.9 | |
| Outdoor Operating Range | Cool (°CDB) | -10 to 46 | ||||||||
| Heat (°CWB) | -15 to 18 | |||||||||
| Indoor Sound Level (H/SL) | Cool (dBA) | 38/19 | 42/19 | 42/19 | 44/26 | 45/28 | 48/29 | 49/30 | 51/37 | 53/38 |
| Heat (dBA) | 39/20 | 40/20 | 42/20 | 43/26 | 45/28 | 48/29 | 49/30 | 51/35 | 52/35 | |
| Outdoor Sound Level (H/SL) | Cool (dBA) | 46/43 | 47/43 | 49/44 | 47/44 | 47/44 | 49/45 | 53/49 | 54/51 | 54/51 |
| Heat (dBA) | 47/44 | 48/44 | 49/45 | 48/45 | 48/45 | 52/45 | 54/49 | 56/51 | 55/51 | |
| Outdoor EPA Sound Power Level (H) | Cool (dBA) | 58 | 59 | 61 | 59 | 59 | 61 | 65 | 66 | 66 |
| Heat (dBA) | 59 | 60 | 61 | 60 | 60 | 64 | 66 | 68 | 67 | |
| Indoor Unit | FTKM20QVMA | FTKM25QVMA | FTKM35QVMA | FTKM46QVMA | FTKM50QVMA | FTKM60QVMA | FTKM71QVMA | FTKM85PAVMA | FTKM95PAVMA | |
| Outdoor Unit | RKM20QVMA | RKM25QVMA | RKM35QVMA | RKM46QVMA | RKM50QVMA | RKM60QVMA | RKM71QVMA | RKM85PAVMA | RKM95PAVMA | |
| Rated Capacity | Cool (kW) | 2.0 | 2.5 | 3.5 | 4.6 | 5.0 | 6.0 | 7.1 | 8.5 | 9.4 |
| Capacity Range | Cool (kW) | 0.9-2.8 | 0.9-3.7 | 0.9-4.2 | 0.9-5.5 | 1.1-6.7 | 1.1-7.5 | 2.0-8.9 | 2.0-10.5 | 2.0-11.2 |
| Indoor Airflow Rate (H) | Cool (l/s) | 152 | 167 | 175 | 203 | 267 | 310 | 310 | 360 | 383 |
| Indoor Fan Speeds | 5 steps, quiet and automatic | |||||||||
| Star Rating (Hot/Avg/Cold) ZERL (Residential) | Cool | 5.5/4.5/5 | 6/5.5/5.5 | 5/4.5/5 | 4/3.5/4 | 5/4.5/5 | 4/4/4 | 3.5/3/3 | - | - |
| Star Rating ERL | Cool | - | - | - | - | - | - | - | 2 | 2 |
| Front Panel Colour | White | |||||||||
| Power Supply | 1 phase, 220-240V, 50Hz | |||||||||
| Power Input (Rated) | Cool (kW) | 0.40 | 0.49 | 0.81 | 1.20 | 1.14 | 1.52 | 1.93 | 2.52 | 2.88 |
| E.E.R | Cool | 5.00 | 5.10 | 4.32 | 3.83 | 4.39 | 3.95 | 3.68 | 3.37 | 3.26 |
| TCSPF (Residential) | Hot/Avg/Cold | 7.03/6.34/6.51 | 7.77/7.07/7.30 | 6.68/6.32/6.58 | 5.69/5.32/5.61 | 6.90/6.41/6.81 | 5.92/5.60/5.95 | 5.06/4.59/4.66 | - | - |
| A.E.E.R | Cool | 4.82 | 4.95 | 4.20 | 3.79 | 4.33 | 3.91 | 3.53 | 3.37 | 3.26 |
| Dimensions (HxWxD) | Indoor (mm) | 285x770x223 | 295x990x263 | 340x1200x259 | ||||||
| Outdoor (mm) | 550x675x284 | 695x930x350 | 990x940x320 | |||||||
| Weight | Indoor (kg) | 9 | 9 | 9 | 9 | 13 | 13 | 13 | 17 | 17 |
| Outdoor (kg) | 28 | 30 | 30 | 51 | 54 | 54 | 60 | 73 | 73 | |
| Compressor Type | Hermetically Sealed Swing Type | |||||||||
| Refrigerant Type | R32 | |||||||||
| Max Pipe Length | (m) | 20 | 20 | 20 | 30 | 30 | 30 | 30 | 30 | 30 |
| Max Level Difference | (m) | 15 | 15 | 15 | 20 | 20 | 20 | 20 | 20 | 20 |
| Pipe Sizes | Liquid (mm) | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 |
| Gas (mm) | 9.5 | 9.5 | 9.5 | 12.7 | 12.7 | 12.7 | 15.9 | 15.9 | 15.9 | |
| Outdoor Operating Range | Cool (°CDB) | -10 to 46 | ||||||||
| Indoor Sound Level (H/SL) | Cool (dBA) | 38/19 | 40/19 | 42/19 | 44/26 | 45/28 | 48/29 | 49/30 | 51/38 | 53/38 |
| Outdoor Sound Level (H/SL) | Cool (dBA) | 46/43 | 47/43 | 49/44 | 47/44 | 47/44 | 49/45 | 53/49 | 55/52 | 56/52 |
| Outdoor EPA Sound Power Level (H) | Cool (dBA) | 58 | 59 | 61 | 59 | 59 | 61 | 65 | 67 | 68 |
