Available in:
Reverse Cycle (Heating & Cooling)
Capacities:
5.0kW, 6.0kW, 7.1kW, 8.5kW, 10.0kW, 12.5kW, 14.0kW
Refrigerant:
R32
Designed specifically to suit installations where ceiling space is at a premium, our Slim-Line Ducted series has unparalleled flexibility and freedom of design.
Ideal for narrow ceiling spaces or under the floor, this ducted system meets the challenges of modern commercial and medium density apartment development.
A Sensitive
Smart Choice
Approved by the National Asthma Council Australia, Daikin air purifiers and split systems are authorised to display the Sensitive Choice butterfly symbol.
Minimum Energy
Performance Standards
All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
Key Features
It's the unique features of Daikin products that makes us the world leader.
R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (not available for Heating Focus models).

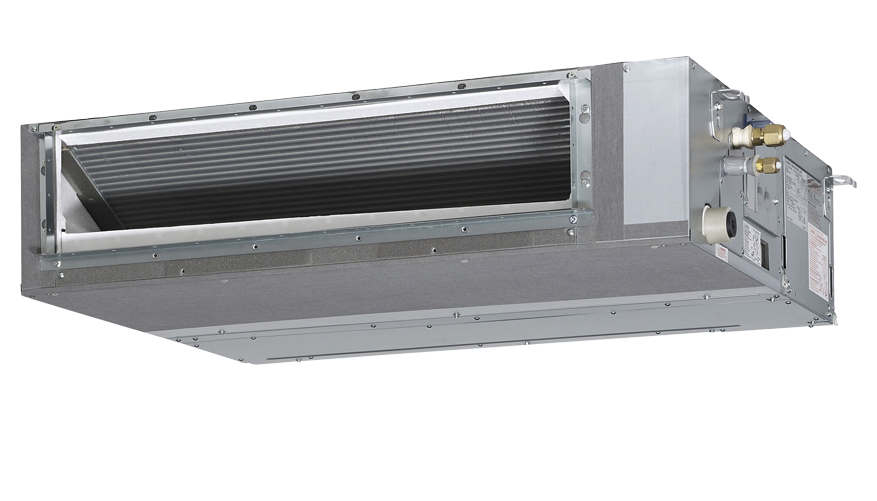

Slim-Line Indoor
Industry leading low profile design of 245mm height ensures clearance in most narrow roof spaces.
Design Flexibility
DC fan with an static pressure of 150Pa and up to 85m (100-140 Class) of available pipe run to suit your design layout.
Automatic Airflow Adjustment
Allows the fan speed to adjust automatically to suit your duct design for optimum airflow distribution.
Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.
Built-in condensate pump
DC condensate pump is equipped as standard with a 750mm lift.
Your Trusted Partner
For three years running, Australians have trusted Daikin to keep their homes comfortable. Thank you for making us your #1 choice!
Streamer Technology
The secret to high performance air purification is Daikin’s Streamer technology. This innovative technology features a high-power plasma discharge that generates high-speed electrons to decompose harmful substances. This powerful oxidative decomposition process continuously removes odours, bacteria and indoor air pollutants, such as formaldehyde, for superior air purification.
Streamer emits high-speed electrons.
The electrons collide and combine with nitrogen and oxygen in the air to form four kinds of elements with powerful oxidative decomposition capabilities.
These elements break down unwanted substances.
How effective is Daikin Streamer Technology?
Eliminates
Pollen
More than 99.6%1 in 2 hours
Eliminates
Mould
More than 99.9%2 in 24 hours
Eliminates
Allergens
More than 99.61%1 in 24 hours
-
Verified at Wakayama Medical University with the following test condition: Irradiated allergens with Streamer & checked decomposition of allergen proteins by either the ELISA method, electrophoresis or electron microscopy.
-
Verified at Japan Food Research Laboratories using antibacterial test/mould elimination test (test number: 204041635-001).
*Room Size is calculated according to NRCC-54013 standard using cigarette smoke CADR tested according to JEM1467.
R22 RETROFIT
CAPABILITY
The Daikin Premium Inverter can be retrofitted onto an existing R22 system by simply replacing both the indoor and outdoor units whilst retaining the field piping intact*.

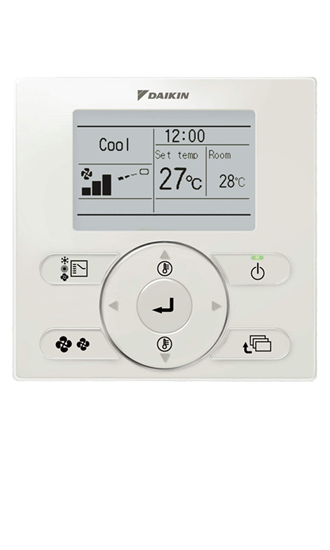

Controllers
Quick Cool/Heat Mode
Temporarily increase air conditioning power to rapidly reach your desired set point temperature.
Off Timer Feature
Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).
Temperature Limit
Predefine a temperature range for cooling or heating cycles for reduced energy consumption.
Home Leave Function
Automatically turns your air conditioner on when the room temperatures drops below 10°C.
Weekly Schedule Timer
Program on and off times to suit your lifestyle.
Backlit Display
Clear large, easy to read text with a intuitive interface.
Buy Online Now!
Air Purifiers with Streamer Technology - The Three C's
The secret to high performance air purification is Daikin’s Streamer technology. This innovative technology features a high-power plasma discharge that generates high-speed electrons to decompose harmful substances. This powerful oxidative decomposition process continuously removes odours, bacteria and indoor air pollutants, such as formaldehyde, for superior air purification.
Streamer emits high-speed electrons.
The electrons collide and combine with nitrogen and oxygen in the air to form four kinds of elements with powerful oxidative decomposition capabilities.
These elements break down unwanted substances.
1. Clash
Daikin’s new range of Air Purifiers with Streamer Technology are designed to capture, suppress and break down pollutants such as mould, pollen, allergens, odours, formaldehyde, traffic pollution and dust.
2. Cycle
Maintains the deodorising filter’s deodorising capacity by assisting odour decomposition.
3. Clean
Removes bacteria from all filters allowing them to be maintenance free and increasing filter longevity.
5 Year
Warranty
Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia
VRV Smart II Control
Provides ultimate comfort & energy savings by automatically optimising core system elements such as variable refrigerant temperature (VRT), indoor unit fan speed, compressor speed and now also outdoor unit fan speed.
VRT Smart Control
Designed for our VRV and Sky Air systems, Variable Refrigerant Temperature continuously adjusts both the inverter compressor speed and refrigerant temperature in cooling and heating, allowing our systems to meet the building load with the highest levels of seasonal efficiency at all times.
Slimline Air Conditioner
Designed specifically to suit installations where ceiling space is at a premium, our Slim-Line Ducted series has unparalleled flexibility and freedom of design.
3 Year Warranty
3 Year Parts & Labour Warranty on new generation VRV H models RXYQ8-24BYM

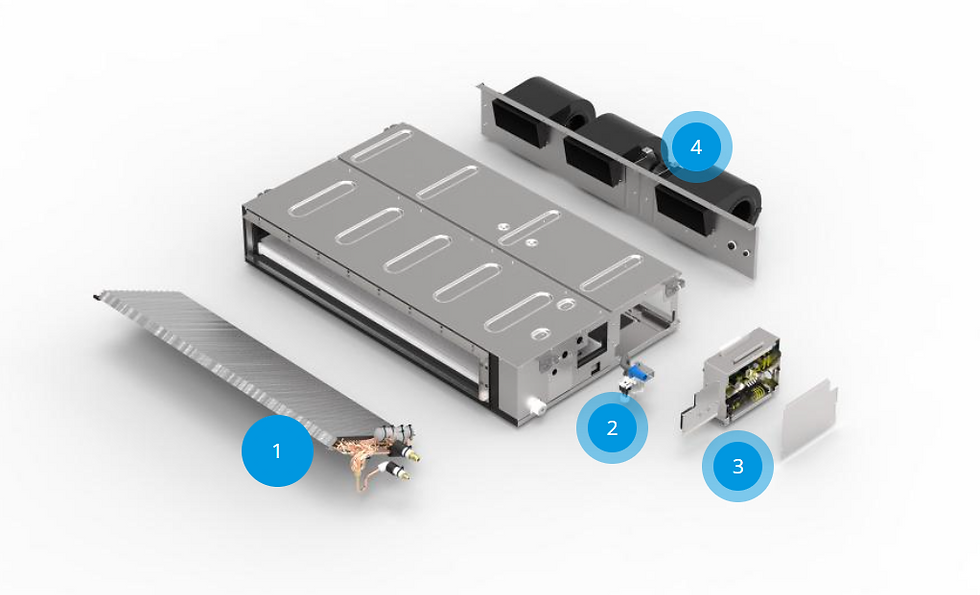

Slimline Air Conditioner Technology
5mm Heat Exchanger Pipe
By adopting the use of 5mm heat exchanger pipe, Daikin’s slim-line ducted was able to achieve an industry leading low profile height of 245mm.
Built-in Drain Pump
Condensate drain pump with a lift of up to 850mm is built into the unit without sacrifice to the unit’s slim form factor.
Automatic Airflow Adjustment
Coupled with DC fan motor and smart control logic, fan speed can be automatically adjusted to suit your duct design for simplified commissioning.
DC Fan Motor
By utilising high power permanent magnets instead of induced magnetism of conventional AC motors, Daikin’s DC motor can deliver significantly higher motor efficiency.
Ducted Air Conditioning
A Daikin Ducted System provides discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.
Technical Specifications
Available Options:
System:
Reverse Cycle
Capacities:
5.0kW, 6.0kW, 7.1kW, 8.5kW, 10.0kW, 12.5kW, 14.0kW
Indoor Type:
Ducted
Power Supply:
1 Phase, 220-240v, 50Hz or 3 Phase, 380-415v, 50Hz
Refrigerant
R32
INDOOR UNIT | FTKM20WVMA | FTKM25WVMA | FTKM35WVMA | FTKM46WVMA | FTKM50WVMA | FTKM60WVMA | FTKM71WVMA |
|---|---|---|---|---|---|---|---|
