L-SERIES

ECONOMICAL & RELIABLE

L-SERIES

  • Available in
    Reverse Cycle (Heating & Cooling)
    Cooling Only
  • Capacities
    Reverse Cycle: 2.0kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW, 8.5kW, 9.4kW
    Cooling Only: 2.0kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW
  • Refrigerant
    R410A

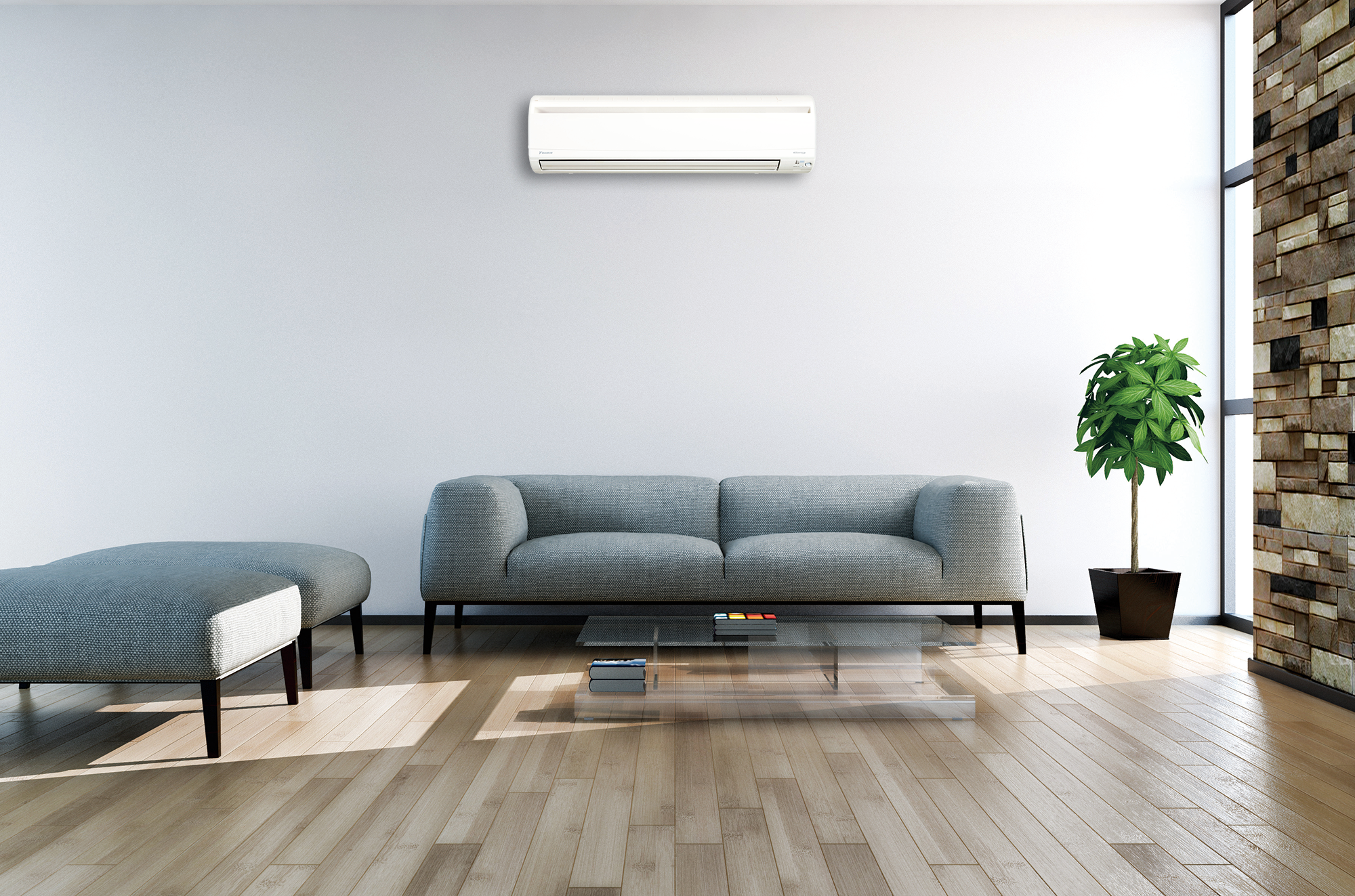

With its advanced and innovative technology, Daikin L-Series wall mounted air conditioners have many economical features, and one of the largest ranges available offering reliable and flexible solutions to suit any room.

Operation Manual Warranty info

Sensitive Choice
A Sensitive
Smart Choice
learn more

Approved by the National Asthma Council Australia, Daikin air purifiers and split systems are authorised to display the Sensitive Choice butterfly symbol.

Key Features

It's the unique features of Daikin products that makes us the world leader.

  • 2-Area-Intelligent Eye

    Intelligent Eye

    An intelligent infrared human presence sensor that automatically enables energy saving operations when the room is unoccupied for 20 minutes.

  • Air-Purification

    Air Purification

    Titanium apatite deodorising air purification filter traps microscopic particles, decomposes odours and even deactivates bacteria.

  • 3D-Airflow

    3-D Airflow

    A combination of vertical and horizontal auto swing to circulate air more effectively in larger rooms.

  • Wide-Angle Lourvres

    Wide Angle Louvres

    Provides wider airflow coverage for effective cooling and heating.

  • Auto-Fan-Speed

    Auto Fan Speed

    An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.

  • Standby Power Function

    Standby Power Function

    Automatically reduces energy consumption when the system is not in use.

5 year
5 Year Warranty
learn more

Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia

Technical Specifications

Available Options:

  • System: Reverse Cycle or Cooling Only
  • Capacities: Reverse Cycle: 2.0kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW, 8.5kW, 9.4kW, Cooling Only: 2.0kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW
  • Indoor Type: Wall Mounted
  • Power Supply: 1 Phase, 220-240, 50Hz
  • Refrigerant: R410A
  • Reverse Cycle
  • Cooling Only
Indoor Unit FTXS20LVMA FTXS25LVMA FTXS35LVMA FTXS46LVMA FTXS50LVMA FTXS60LVMA FTXS71LVMA FTXS85LVMA FTXS95LVMA

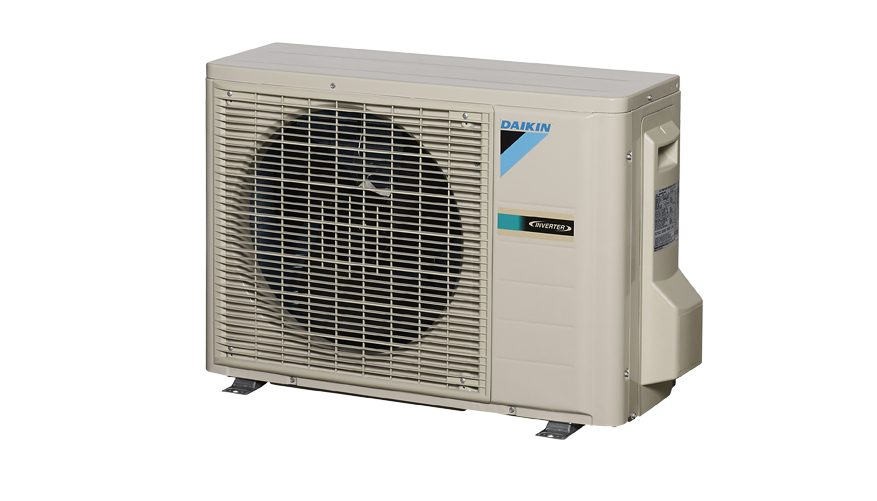

Outdoor Unit RXS20LVMA RXS25LVMA RXS35LVMA RXS46LVMA RXS50LVMA RXS60LVMA RXS71LVMA RXS85LVMA RXS95LVMA
Rated Capacity Cool (kW) 2 2.5 3.5 4.6 5 6 7.1 8.5 9.4
  Heat (kW) 2.7 3.4 4 5.1 6 7 8 9 10.5
Capacity Range Cool (kW) 1.3-2.8 1.3-3.2 1.4-4.0 1.7-5.3 1.7-6.0 1.7-6.7 2.3-8.5 3.0-10.5 3.0-11.2
  Heat (kW) 1.3-4.3 1.3-4.7 1.4-5.2 1.7-6.8 1.7-7.7 1.7-8.0 2.3-10.0 3.0-11.2 3.0-11.7
Indoor Airflow Rate (H) Cool (l/s) 162 177 188 203 305 320 352 397 378
  Heat (l/s) 175 192 200 215 323 353 360 402 415
Indoor Fan Speeds   5 steps, quiet and automatic
Energy Label/Star Ratings Cool 4 4.5 3 2.5 3 2.5 2 2 2
  Heat 4 5 4.5 2.5 3.5 3.5 2.5 2.5 2
Front Panel Colour   White
Power Supply   1 phase, 220-240V, 50Hz
Power Input (Rated) Cool (kW) 0.45 0.54 0.91 1.25 1.32 1.69 2.08 2.58 2.88
  Heat (kW) 0.61 0.70 0.88 1.37 1.47 1.73 2.18 2.51 3.22
E.E.R/C.O.P Cool/Heat 4.44/4.43 4.63/4.86 3.85/4.55 3.68/3.72 3.79/4.08 3.55/4.05 3.41/3.67 3.29/3.59 3.26/3.26
A.E.E.R/A.C.O.P Cool/Heat 4.37/4.37 4.57/4.81 3.81/4.51 3.66/3.70 3.77/4.06 3.53/4.03 3.40/3.66 3.28/3.57 3.25/3.25
Dimensions (HxWxD) Indoor (mm) 295x800x215 340x1050x248 340x1200x240
  Outdoor (mm) 550x765x285 735x825x300 770x900x320 990x940x320
Weight Indoor (kg) 9 10 10 10 14 14 14 17 18
  Outdoor (kg) 31 34 34 46 46 46 71 80 82
Compressor Type   Hermetically Sealed Swing Type
Refrigerant Type   R410A
Max Pipe Length (m) 20 20 20 30 30 30 30 30 30
Max Level Difference (m) 15 15 15 20 20 20 20 20 20
Pipe Sizes Liquid (mm) 6.4 6.4 6.4 6.4 6.4 6.4 9.5 9.5 9.5
  Gas (mm) 9.5 9.5 9.5 12.7 12.7 12.7 15.9 15.9 15.9
Outdoor Operating Range Cool (°CDB) -10 to 46
  Heat (°CWB) -15 to 18
Indoor Sound Level (H/SL) Cool (dBA) 38/22 40/22 42/23 44/32 46/32 48/33 51/34 49/37 51/38
  Heat (dBA) 39/25 40/25 42/26 42/30 45/30 48/30 49/32 49/35 50/35
Outdoor Sound Level (H/SL) Cool (dBA) 46/43 47/43 49/44 47/44 47/44 49/46 52/49 54/51 54/50
  Heat (dBA) 47/44 48/44 49/45 48/45 48/45 49/46 53/49 55/51 55/51
Outdoor EPA Sound Power Level (H) Cool (dBA) 60 61 63 61 61 63 66 68 68
  Heat (dBA) 61 62 63 62 62 63 67 69 69



Indoor Unit FTKS20LVMA FTKS25LVMA FTKS35LVMA FTKS46LVMA FTKS50LVMA FTKS60LVMA FTKS71LVMA
Outdoor Unit RKS20LVMA RKS25LVMA RKS35LVMA RKS46LVMA RKS50LVMA RKS60LVMA RKS71LVMA
Rated Capacity Cool (kW) 2 2.5 3.5 4.6 5 6 7.1
Capacity Range Cool (kW) 1.3-2.8 1.3-3.2 1.4-4.0 1.7-5.3 1.7-6.0 1.7-6.7 2.3-8.5
Indoor Airflow Rate (H) Cool (l/s) 162 177 188 203 305 320 352
Indoor Fan Speeds   5 steps, quiet and automatic
Energy Label/Star Ratings Cool 4 4.5 3 2.5 3 2.5 2
Front Panel Colour   White
Power Supply   1 phase, 220-240V, 50Hz
Power Input (Rated) Cool (kW) 0.45 0.54 0.91 1.25 1.32 1.69 2.08
E.E.R Cool 4.44 4.63 3.85 3.68 3.79 3.55 3.41
A.E.E.R Cool 4.37 4.57 3.81 3.66 3.77 3.53 3.40
Dimensions (HxWxD) Indoor (mm) 295x800x215 340x1050x248
  Outdoor (mm) 550x765x285 735x825x300 770x900x320
Weight Indoor (kg) 9 10 10 10 14 14 14
  Outdoor (kg) 31 34 34 46 46 46 71
Compressor Type   Hermetically Sealed Swing Type
Refrigerant Type   R410A
Max Pipe Length (m) 20 20 20 30 30 30 30
Max Level Difference (m) 15 15 15 20 20 20 20
Pipe Sizes Liquid (mm) 6.4 6.4 6.4 6.4 6.4 6.4 9.5
  Gas (mm) 9.5 9.5 9.5 12.7 12.7 12.7 15.9
Outdoor Operating Range Cool (°CDB) -10 to 46
Indoor Sound Level (H/SL) Cool (dBA) 38/22 40/22 42/23 44/32 46/32 48/33 51/34
Outdoor Sound Level (H/SL) Cool (dBA) 46/43 47/43 49/44 47/44 47/44 49/46 52/49
Outdoor EPA Sound Power Level (H) Cool (dBA) 60 61 63 61 61 63 66
