SUPER MULTI NX

MAKE EVERY ROOM A COMFORT ZONE

SUPER MULTI NX

  • Available in
    Reverse Cycle (Heating or Cooling)
    Cooling Only
  • Capacities
    Reverse Cycle: 5.2kW, 6.8kW, 8.0kW, 10.0kW
    Cooling Only: 5.8kW, 6.8kW, 8.0kW, 10.0kW
  • Refrigerant
    R410A

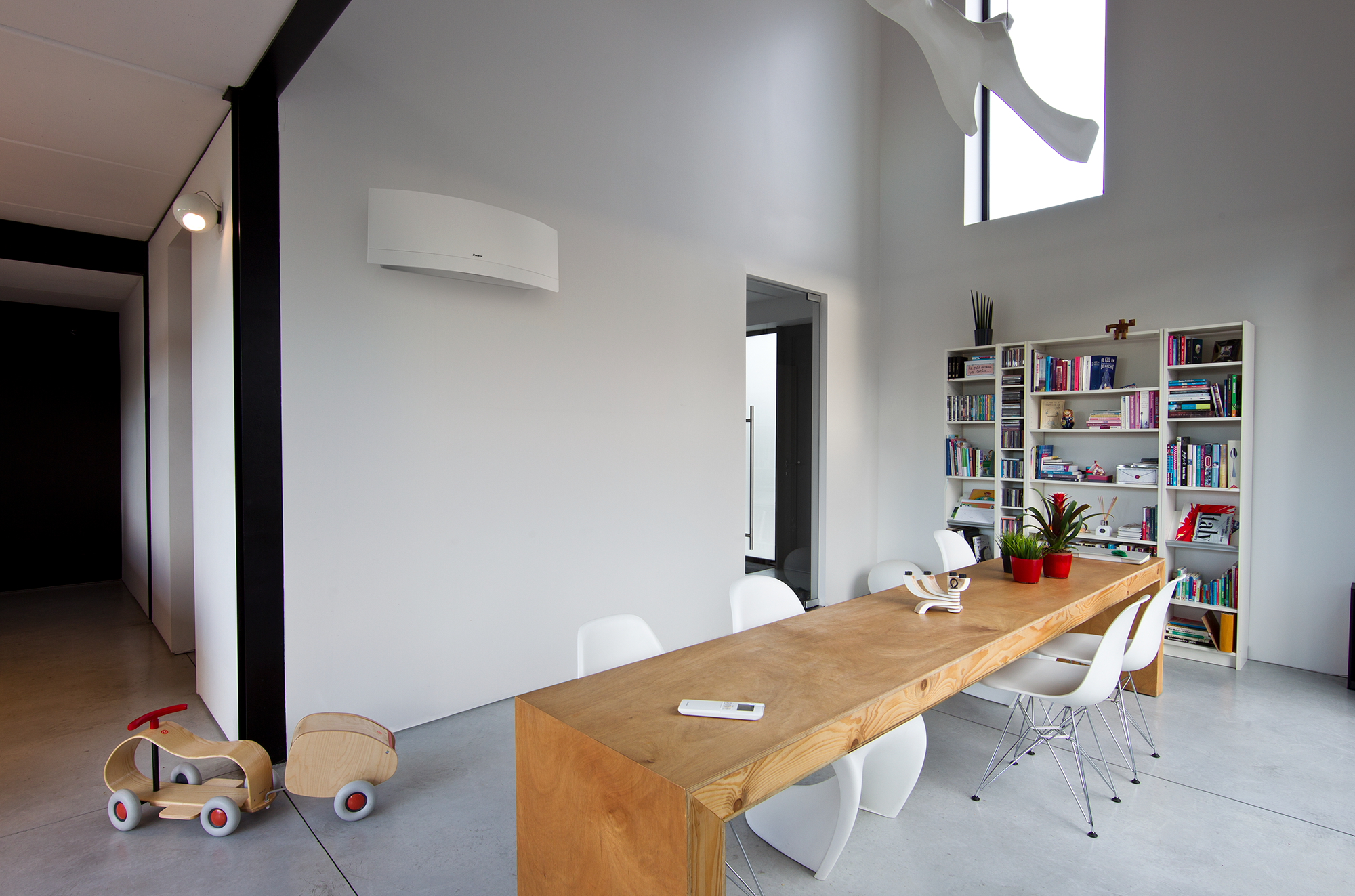

With a wide variety of indoor units available, it is easy to select a model that matches your home décor and blends in unobtrusively.

A Daikin Super Multi NX air conditioning system gives you the ability to control indoor units individually. This means the ideal temperature can be maintained while ensuring running cost are kept low as only rooms requiring air conditioning are switched on.

Warranty info

MEPS
Minimum Energy
Performance Standards
learn more

All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Key Features

It's the unique features of Daikin products that makes us the world leader.

  • Convenient-Control

    Convenient Control

    Both our wired and wireless controllers enable individual control of settings such as temperature, airflow volume and scheduled operations.

  • Intelligent Comfort 2

    Intelligent Comfort

    Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.

  • Truly Versatile

    Truly Versatile

    Up to 5 indoor units can be connected to the outdoor unit for total home air conditioning.

  • Improved Energy Efficiency

    Energy Efficient

    Running costs are kept low as only rooms requiring air conditioning can be switch on independently.

  • Priority-Setting

    Priority Room Comfort

    Allows you to shift capacity from the other rooms to your priority room when required for rapid cooling or heating of that space.

  • Individual Comfort

    Comfort for Everyone

    Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants.

5 year
5 Year Warranty
learn more

Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia

Technical Specifications

Available Options:

  • System: Reverse Cycle or Cooling Only
  • Capacities: Reverse Cycle: 5.2kW, 6.8kW, 8.0kW, 10.0kW, Cooling Only: 5.8kW, 6.8kW, 8.0kW, 10.0kW
  • Indoor Type: Wall Mounted, Bulkhead, Floor Standing, Ceiling Suspended & Cassettes
  • Power Supply: 1 Phase, 220-240, 50Hz
  • Refrigerant: R410A

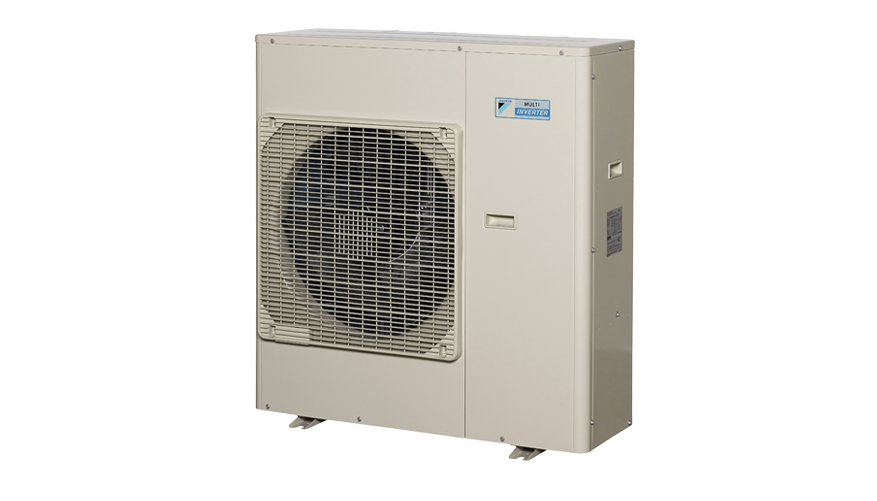

  • Outdoor Units
  • Wall Mounted

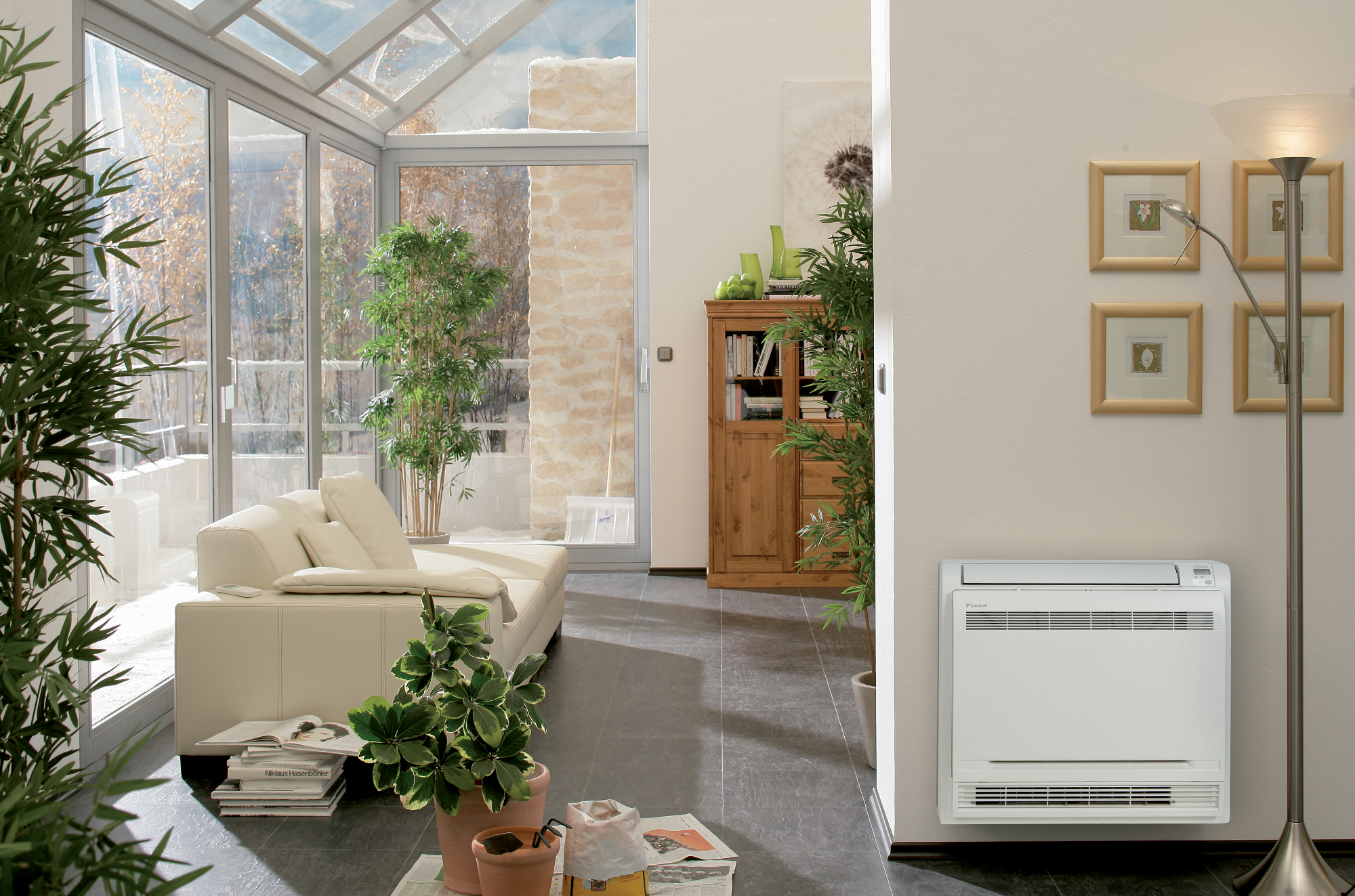

  • Floor Standing
  • Floor/Ceiling Suspended
  • Bulkhead
  • Compact Cassette
  Reverse Cycle Cooling Only
Outdoor Unit 3MXS52LVMA 3MXS68LVMA 4MXS80LVMA 5MXS100LVMA 3MKS58LVMA 3MKS68LVMA 4MKS80LVMA 5MKS100LVMA
Power Supply    1 phase, 220-240V/220-230V, 50/60Hz       1 phase, 220-240V/220-230V, 50/60Hz
Rated Capacity Cool (kW) 5.2 6.8 8.0 10.0 5.8 6.8 8.0 10.0
  Heat (kW) 6.5 8.4 9.28 11.0 -
Max Connectable Indoor Units   3 4 5 3 4 5
Max Connected Indoor Unit Capacity (kW) 9 11 14.5 15.6 10 11 15.6
Casing Colour    Ivory White  Ivory White
Compressor Type    Hermetically Sealed Swing Type  Hermetically sealed swing type
Refrigerant Type    R410A  R410A
Sound Level (Rated/Quiet) Cool (dBA) 46/43 48/45 49/46 46/43 48/45 49/46
  Heat (dBA) 47/44 49/46 -
Sound Power Level (H) Cool (dBA) 59 61 62 59 61 62
  Heat (dBA) 60 62 -
Dimensions (HxWxD) (mm) 735x936x300  770x900x320 990x940x320 735x936x300  770x900x320 990x940x320
Weight (kg) 49 59 72 83 49 59 72 83
Operation Range Cool (°CDB) -5 to 46 -10 to 46 -10 to 46
  Heat (°CWB) -15 to 15.5 -15 to 18 -
Max Piping Length Total (m) 50 60 70 80 50 60 70 80
  Per Room (m) 25 30 25 30
Additional Charge (g/m) 20 (for 30m or more) 20 (for 40m or more) Chargeless 20 (for 30m or more) Chargeless 20 (for 40m or more)
Max Installation Height Difference (m) 15 (between indoor and outdoor units) / 7.5 (between indoor units) 15 (between indoor and outdoor units) / 7.5 (between indoor units)



Series Zena Wall Mounted (Reverse Cycle) Wall Mounted (Reverse Cycle) Wall Mounted (Cooling Only)
Indoor Unit CTXG25PVMAW CTXG35PVMAW CTXG50PVMAW CTXG25PVMAS CTXG35PVMAS CTXG50PVMAS FTXS20KVMA FTXS25KVMA FTXS35KVMA FTXS50KAVMA FTXS60KAVMA FTXS71KAVMA FTKS20KVMA FTKS25KVMA FTKS35KVMA FTKS50KAVMA FTKS60KAVMA FTKS71KAVMA
Power Supply   1 phase, 230-240V, 50Hz 1 phase, 220-240V/220-230V, 50/60Hz 1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0 2.5 3.5 5.0 2.0 2.5 3.5 5.0 6.0 7.1 2.0 2.5 3.5 5.0 6.0 7.1
Front Panel Colour   White Silver  White  White
Airflow Rate (H) Cool (l/s) 138 177 180 138 177 180 161 188 245 270 290 161 188 245 270 290
  Heat (l/s) 173 198 207 173 198 207 175 191 270 290 358 -
Sound Level (H/L/SL) Cool (dBA) 38/25/21 45/26/22 46/35/32 38/25/21 45/26/22 46/35/32 38/25/22 42/26/23 44/35/32 45/36/33 46/37/34 38/25/22 42/26/23 44/35/32 45/36/33 46/37/34
  Heat (dBA) 41/28/21 45/29/22 47/35/32 41/28/21 45/29/22 47/35/32 39/28/25 42/29/26 42/33/30 44/35/32 46/37/34 -
Sound Power Level (H) Cool (dBA) 54 61 63 54 61 63 54 58 60 61 62 54 58 60 61 62
  Heat (dBA) 57 61 63 57 61 63 55 58 58 60 62 -
Fan Speed   5 steps, quiet and automatic 5 steps, quiet and automatic 5 steps, quiet and automatic
Dimensions (HxWxD) (mm) 303x998x212 295x800x215  290x1050x250 295x800x215  290x1050x250
Machine Weight (kg) 12 9 10 12 9 10 12
Piping Connections Liquid (mm) 6.4 (Flared) 6.4 (Flared) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared) 9.5 (Flared) 12.7 (Flared) 9.5 (Flared) 12.7 (Flared) 15.9 (Flared) 9.5 (Flared) 12.7 (Flared) 15.9 (Flared)
  Drain (mm) 18 ID 14 / OD 18 18 ID 14 / OD 18 18

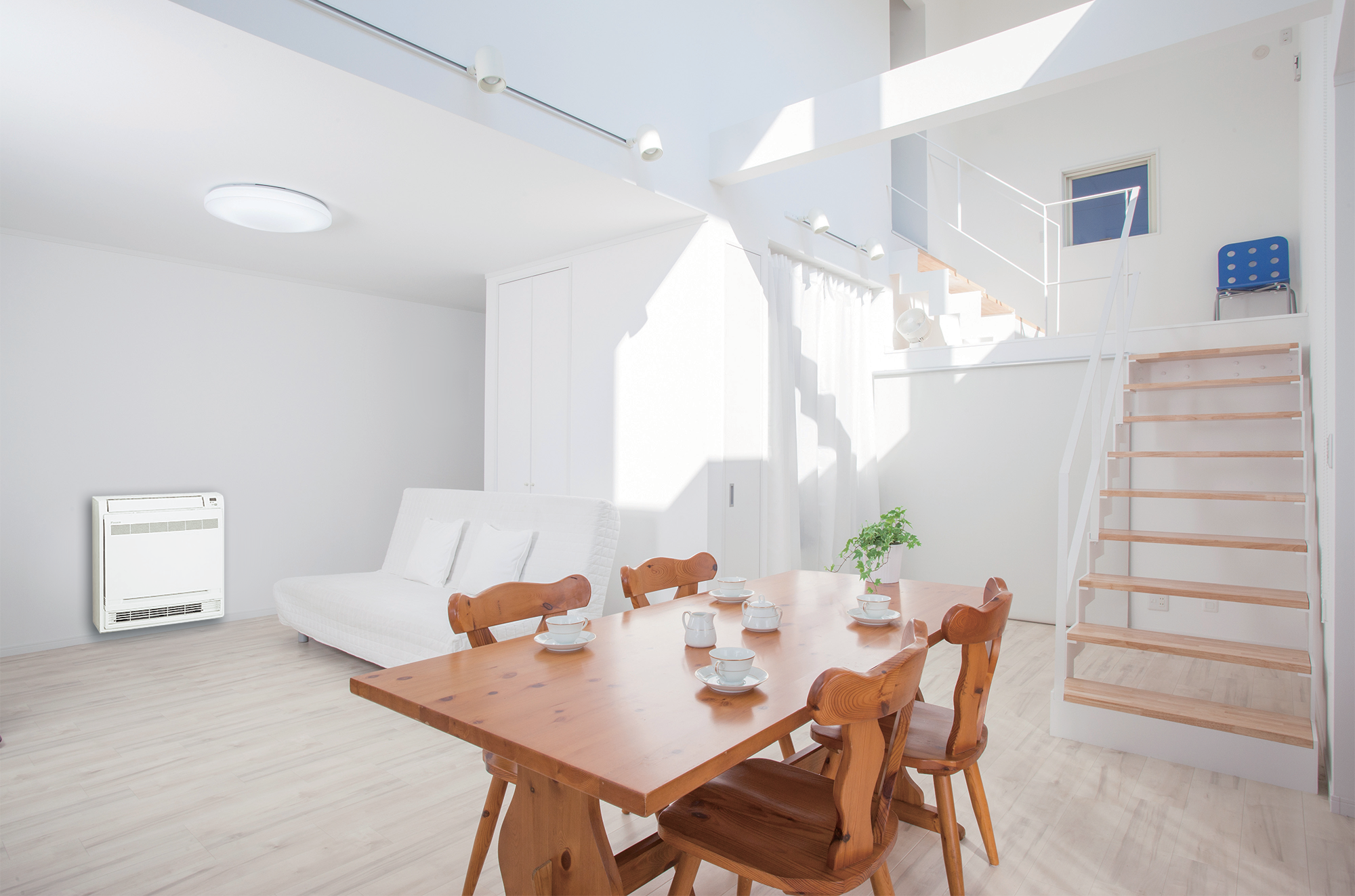

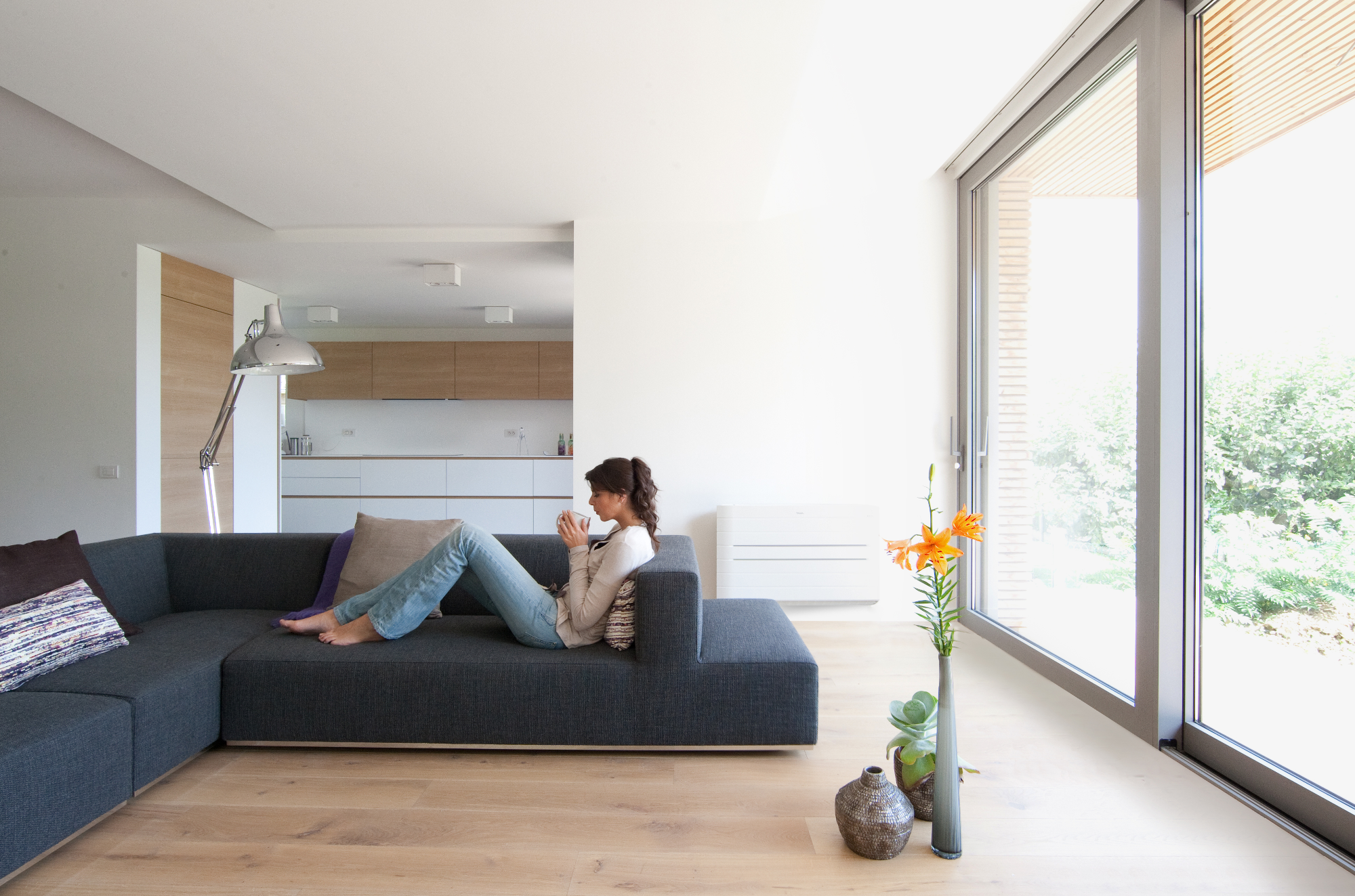

Series Nexura (Reverse Cycle) Floor Standing (Reverse Cycle)
Indoor Unit FVXG25K2V1B FVXG35K2V1B FVXG50K2V1B FVXS25KV1A FVXS35KV1A FVXS50KV1A
Power Supply   1 phase, 220-240V, 50Hz 1 phase, 220-240V, 50Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0 2.5 3.5 5.0
Front Panel Colour   White White
Airflow Rate (H) Cool (l/s) 148 151 176 137 142 178
  Heat (l/s) 165 170 203 147 157 197
Sound Level (H/L/SL) Cool (dBA) 38/26/23 39/27/24 44/36/32 38/26/23 39/27/24 44/36/32
  Heat (dBA) 39/26/22 40/27/23 46/34/30 38/26/23 39/27/24 45/36/32
Sound Power Level (H) Cool (dBA) 54 55 56 47 48 53
  Heat (dBA) 55 56 58 47 48 54
Fan Speed   5 steps, quiet and automatic 5 steps, quiet and automatic
Dimensions (HxWxD) (mm) 600x950x215 600x700x210
Machine Weight (kg) 22 14
Piping Connections Liquid (mm) 6.4 (Flared) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared) 9.5 (Flared) 12.7 (Flared)
  Drain (mm) 18 20

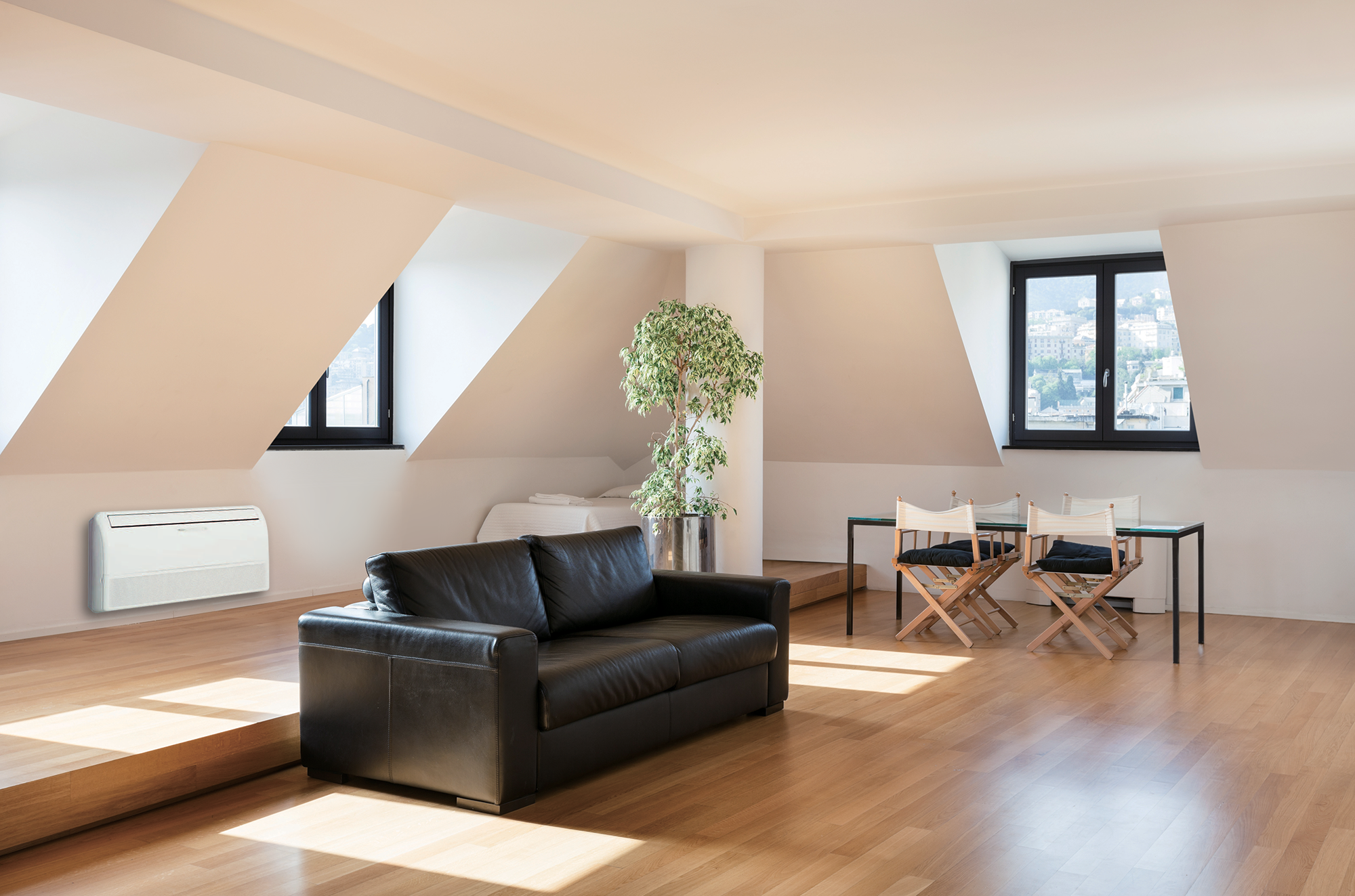

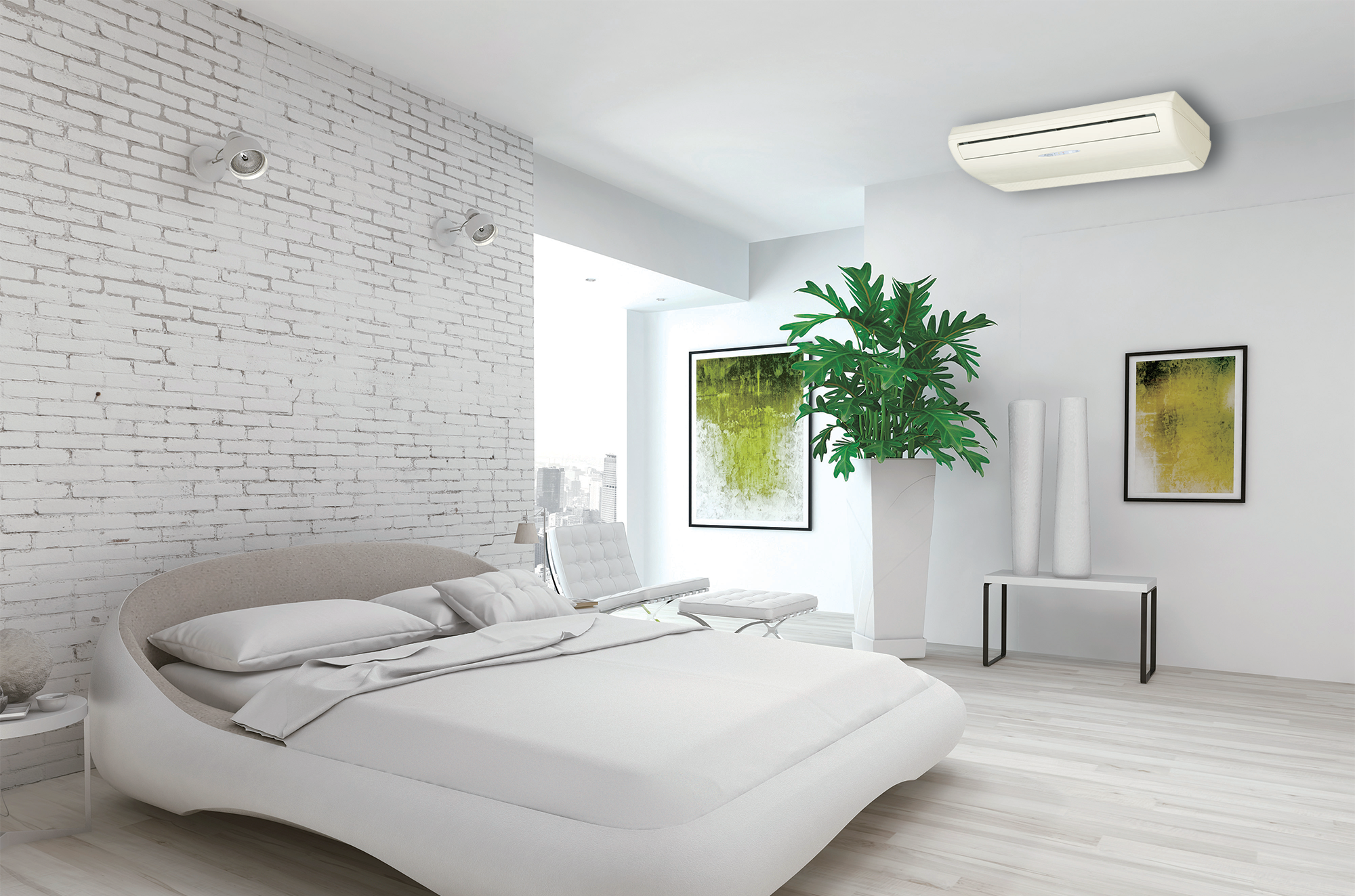

Series  Floor/Ceiling Suspended Dual (Reverse Cycle)
Indoor Unit FLXS25BVMA FLXS35GVMA FLXS50GVMA FLXS60GVMA
Power Supply   1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0 6
Front Panel Colour   Almond White
Airflow Rate (H) Cool (l/s) 126 143 190 200
  Heat (l/s) 153 163 202 213
Sound Level (H/L/SL) Cool (dBA) 37/31/28 38/32/29 47/39/36 48/41/39
  Heat (dBA) 37/31/29 39/33/30 46/35/33 47/37/34
Sound Power Level (H) Cool (dBA) 53 54 63 64
  Heat (dBA) 53 55 62 63
Fan Speed   5 steps, quiet and automatic
Dimensions (HxWxD) (mm)  490x1050x200
Machine Weight (kg)  16 17
Piping Connections Liquid (mm) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared)
  Drain (mm) 18

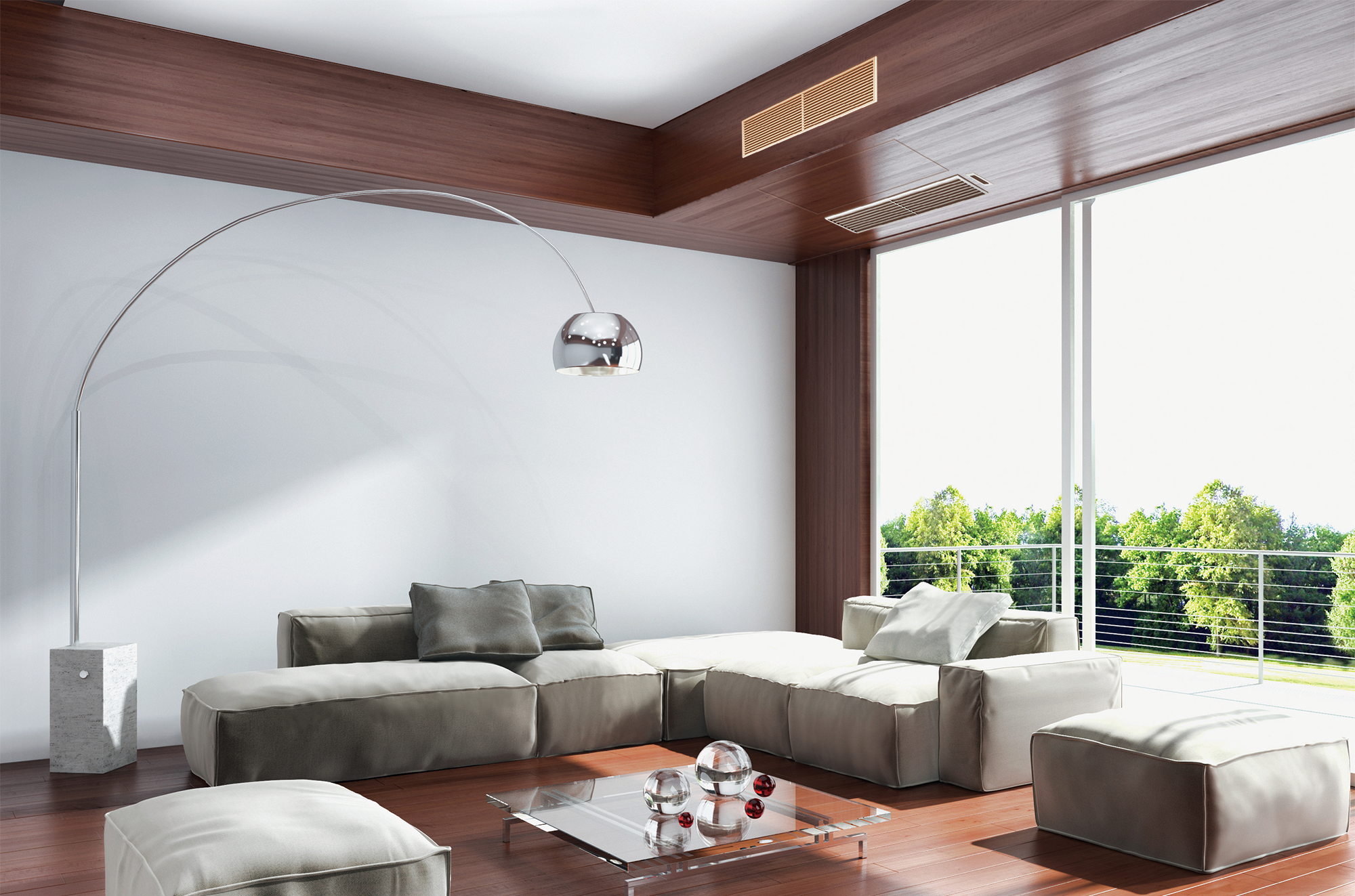

Series Bulkhead (Reverse Cycle) Bulkhead (Cooling Only)
Indoor Unit CDXS25EAVMA CDXS35EAVMA FDXS25CVMA FDXS35CVMA FDXS50CVMA FDXS60CVMA CDKS25EAVMA CDKS35EAVMA CDKS25CVMA CDKS35CVMA CDKS50CVMA CDKS60CVMA
Power Supply   1 phase, 220-240V/220-230V, 50/60Hz 1 phase, 220-240V/220-230V, 50/60Hz
Capacity Cool/Heat (kW) 2.5 3.5 2.5 3.5 5.0 6.0 2.5 3.5 2.5 3.5 5.0 6.0
Airflow Rate (H) Cool (l/s) 145 158 167 200 267 145 158 167 200 267
  Heat (l/s) 145 158 167 200 267
Sound Level (H/L/SL) Cool (dBA) 35/31/29 37/33/31 38/34/32 35/31/29 37/33/31 38/34/32
  Heat (dBA) 35/31/29 37/33/31 38/34/32
Sound Power Level (H) Cool (dBA)  53 55 56  53 55 56
  Heat (dBA)  53 55 56
Fan Speed   5 steps, quiet and automatic 5 steps, quiet and automatic
Dimensions (HxWxD) (mm)  200x700x620 200x900x620 200x1100x620  200x700x620 200x900x620 200x1100x620
Machine Weight (kg)  21 25 25 27 30  21 25 25 27 30
Piping Connections Liquid (mm)  6.4 (Flared)  6.4 (Flared)
  Gas (mm)  9.5 (Flared) 12.7 (Flared)  9.5 (Flared) 12.7 (Flared)
  Drain (mm)  VP20  (ID 20 / OD 26)  VP20  (ID 20 / OD 26)
External Static Pressure (Pa) 30 40 30 40

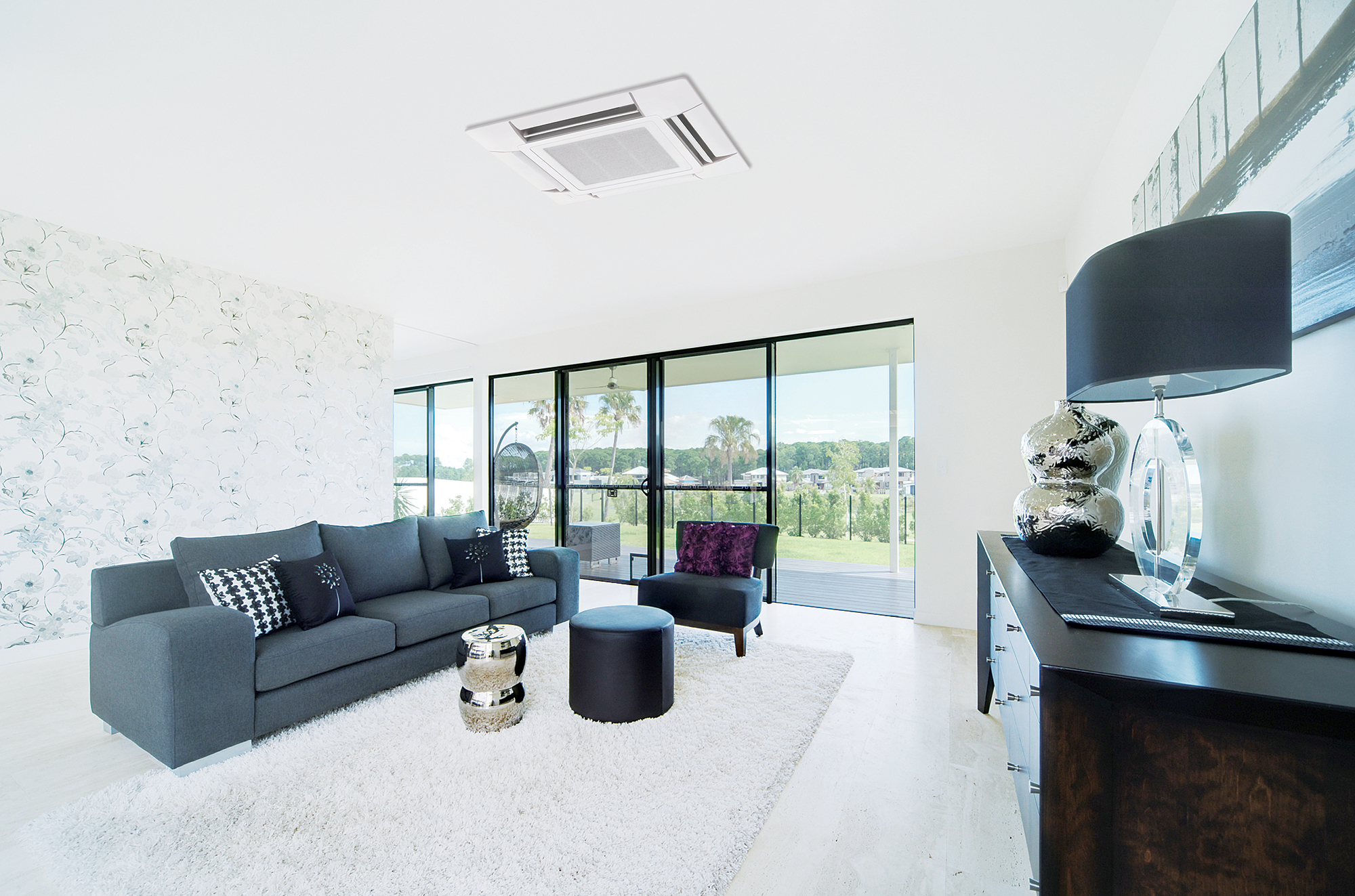

Series Compact Cassette (Reverse Cycle & Cooling Only)
Indoor Unit FFQ25BV1B FFQ35BV1B FFQ50BV1B FFQ60BV1B
Power Supply   1 phase, 220-240V, 50Hz
Capacity Cool/Heat (kW) 2.5 3.5 5.0 6.0
Front Panel Colour   White
Airflow Rate (H) Cool (l/s) 150 167 200 250
  Heat (l/s) 150 167 200 250
Sound Level (H/L) Cool (dBA) 29.5/24.5 32/25 36/37 41/32
  Heat (dBA) 29.5/24.5 32/25 36/37 41/32
Sound Power Level (H) Cool (dBA) 46.5 49 53 58
  Heat (dBA) 46.5 49 53 58
Fan Speed   2 steps
Dimensions (HxWxD) (mm) 286x575x575
Machine Weight (kg) 17.5
Piping Connections Liquid (mm) 6.4 (Flared)
  Gas (mm) 9.5 (Flared) 12.7 (Flared)
  Drain (mm) VP20 (OD 26 / ID 20)



Super Multi NX

A Daikin Multi Split Air Conditioner can heat or cool multiple rooms using only one outdoor unit, and allows individual control of the air conditioning in each room. This not only optimises comfort but saves on running costs by only heating or cooling rooms as required.
